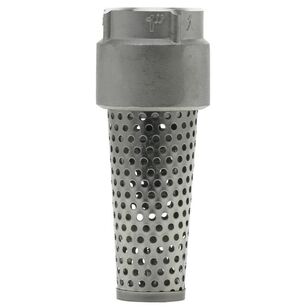

BOSHART 17FVSS Series 17FVSS-075 Foot Valve, 3/4 in Nominal, FPT End, 200 psi, Stainless Steel Body
BOSHART 17FVSS Series 17FVSS-075 Foot Valve, 3/4 in Nominal, FPT End, 200 psi, Stainless Steel Body
BOSHART Foot Valve, 17FVSS Series, 3/4 in Nominal, FPT End Style, 200 psi, 180 deg F, Water Media, Stainless Steel Body, Stainless Steel Spring, FKM Seal, 1.4 in Overall Length, 1.4 in Overall Width, 3.45 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$30.18Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBOSHART
Body MaterialStainless Steel
End StyleFPT
IndustryPlumbing
MediaWater
Nominal Size3/4
Overall Height3.45
Overall Length1.4
Overall Width1.4
Pressure Rating200
Seal MaterialFKM
Series17FVSS Series
Spring MaterialStainless Steel
Temperature Rating180
Additional Information
ANSI/ASME B1.20.1|NSF/ANSI 372
Features & Benefits
- Cast 304 stainless steel body and poppet Viton O-ring seal 304 stainless steel screen with .104" dia holes Threads conform to ANSI/ASME B1.20.1 Max Pressure Rating: 200 PSI 200 PSI WOG Non-Shock - WOG pressure rating based on ambient temperature Max Temp Rating: 180degF (82degC)
Marketing Information
Stainless steel foot valves prevent water from back flowing into the water source. They have a higher corrosion resistance.
BOSHART 17FVSS Series 17FVSS-075 Foot Valve, 3/4 in Nominal, FPT End, 200 psi, Stainless Steel Body
BrandBOSHART
MFG #17FVSS-075
Keller #1357303
