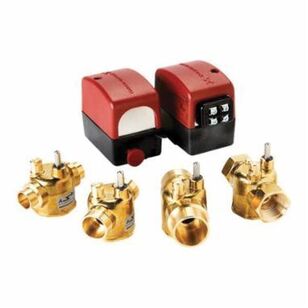

Grundfos UP-ZV Series 97627415 Hydronic Zone Valve With Sealed End Switch, 1/2 in, Sweat, 3.5 Cv
Grundfos UP-ZV Series 97627415 Hydronic Zone Valve With Sealed End Switch, 1/2 in, Sweat, 3.5 Cv
Grundfos Hydronic Zone Valve With Sealed End Switch, UP-ZV Series, 1/2 in Nominal, Sweat Connection, Number of Ways/Position: 2, 300 psi, 3.5 Cv Flow Coefficient (Cv), Lever Operator, EPDM/Stainless Steel Stem, Brass, Easy Push Actuator, 24 VAC, 5 W, VA Rating: 7 VA, 32 to 240 deg F, 4-17/32 in L x 2-3/8 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$177.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Actuator TypeEasy Push
Connection TypeSweat
Dimensions4-17/32 " L x 2-3/8 " W
Flow Coefficient (Cv)3.5
MaterialBrass
Nominal Size1/2
Number of Ways/Position2
Operator TypeLever
Power Rating5
Pressure Rating300
SeriesUP-ZV Series
Stem MaterialEPDM/Stainless Steel
Temperature Rating32 to 240
VA Rating7
Voltage Rating24
Additional Information
cULus Listed
Features & Benefits
- 24 VAC normally closed motorized inline removable actuator design for ease of installation and service Silent close-off technology Manual open/closed lever Compact, economical design 50% glycol rating Synchronous hysteresis motor "Easy push" actuator removal button Enlarged geared transmission/coil spring delivers 20 psi close-off at 7.5 Cv Durable forged brass body High-temperature EPDM paddle and O-rings Convenient cleanout cap
Marketing Information
Grundfos up zone valves incorporate 24 VAC normally closed motorized actuator design with or without sealed end switch. All components are corrosion-resistant. The high-gear ratio transmission eliminates gear tooth stress, water hammer issues and valve "bouncing" during closing. Forged brass body is two way flow with high-Cv rating and incorporates a durable stainless steel/EPDM valve stem assembly.
Grundfos UP-ZV Series 97627415 Hydronic Zone Valve With Sealed End Switch, 1/2 in, Sweat, 3.5 Cv
BrandGrundfos
MFG #97627415
Keller #1359491
