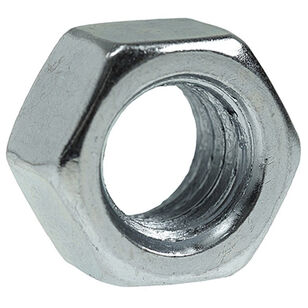

Dottie® HN14 Hex Nut, 1/4-20 Thread, 0.212 to 0.226 in H, Carbon Steel, Zinc-Plated
Dottie® HN14 Hex Nut, 1/4-20 Thread, 0.212 to 0.226 in H, Carbon Steel, Zinc-Plated
Dottie® Hex Nut, 1/4-20 Thread, UNC-2B Thread, 0.212 to 0.226 in Height, Width Across Flat: 0.428 to 0.438 in, 0.488 to 0.505 in Width Across Corner, 2 Grade, 32 HRC Hardness, 2862 lb Load, Material Standard: SAE J995-2017, Carbon Steel, Finish: Zinc-Plated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.09 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDottie®
ApplicationGeneral-Purpose
FinishZinc-Plated
Grade2
Hardness32
Height0.212 to 0.226
IndustryPlumbing
Load Capacity2862
MaterialCarbon Steel
Material StandardSAE J995-2017
Thread Size1/4-20
Thread TypeUNC-2B
WarrantyLimited
Width Across Corner0.488 to 0.505
Width Across Flat0.428 to 0.438
Shipping Dimensions (L x W x H)1.54" x 2.92" x 3.66"
Additional Information
ASME B1.1|RoHS Compliant
Features & Benefits
- Hexagonal outer shape for easy fastening, zinc-plated
Documents
Marketing Information
Zinc-plated hex nuts are manufactured from Grade 2 carbon steel and are used to connect both metal and wood components. They are also used in conjunction with bolts, screws, studs, threaded rod and any other fastener that has machine screw threads. They are manufactured under the SAE J995-2017 standard.
