NIBCO T-413-Y-1/2 BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO T-413-Y-1/2 BRZ CHECK VLV NOT FOR POTABLE USE

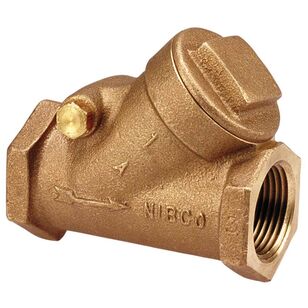

NIBCO® Horizontal Swing Check Valve, T-413-Y Series, 1/2 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125 lb, 353 deg F, Steam Media, 2.44 in Inlet to Outlet Length, 1.69 in Top to Inlet Center, Bronze Body, PTFE Seat, PTFE Disc, Bronze Trim, Bronze Softgoods, Contains Lead, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$240.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialBronze
Connection TypeFNPT
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length2.44
MediaSteam
Nominal Size1/2
Pressure Class125
Pressure Rating200
Seat MaterialPTFE
SeriesT-413-Y Series
Softgoods MaterialBronze
Temperature Rating353
Top to Inlet Center1.69
Trim MaterialBronze
Shipping Dimensions (L x W x H)13.31" x 4.38" x 3.13"
Additional Information
MSS SP-139
Features & Benefits
- Y-pattern Renewable bronze disc Regrindable seat
Documents
Marketing Information
The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features thread end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas service. The NIBCO® swing check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing checks valve may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 Year 125% limited warranty.
NIBCO T-413-Y-1/2 BRZ CHECK VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL74006
Keller #136366
