• Solid brass construction for enhanced durability
• Corrosion resistant internal components
• Temperature adjustment handle has a locking mechanism to prevent tampering
• Integral checks and inlet screens to prevent cross-flow and contamination
• Temperature control to ASSE 1016, 1070 down to 0.5 GPM
• Advanced thermal actuator improves performance
• Polysulfone plunger for extended life
• Union connections for easy maintenance

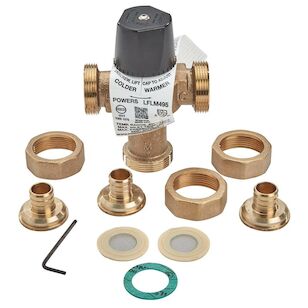

This 1 inch HydroGuard(R) lead free under the counter thermostatic mixing valve is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. It features a rugged brass body, union PEX connections, lock-in handle mechanism, paraffin-based actuator, and integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature operating range is 80 to 120 degrees F (27 to 49 degrees C) and the maximum operating pressure is 125 psi (862 kPa).
