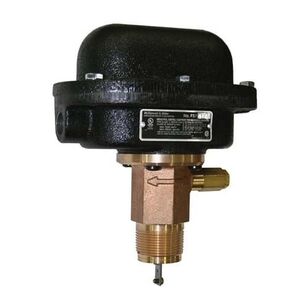

McDonnell & Miller FS7-4E Series 120100 Industrial Liquid Flow Switch, 4.8 to 7.7 gpm, 120/240 V, 1-1/4 in NPT, SPDT
McDonnell & Miller FS7-4E Series 120100 Industrial Liquid Flow Switch, 4.8 to 7.7 gpm, 120/240 V, 1-1/4 in NPT, SPDT
McDonnell & Miller Industrial Liquid Flow Switch, FS7-4E Series, 4.8 to 7.7 gpm Flow Rate, 120/240 V, 7.4 A, 50/60 Hz, 1-1/4 in Connection, NPT Connection, SPDT Switch, 300 to 1000 psi, 10 fps Maximum Velocity, NEMA 7/9 Enclosure, 32 to 300 deg F, 4-5/8 in L x 13-3/4 in W x 9-11/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,030.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMcDonnell & Miller
Amperage Rating7.4
Connection Size1-1/4
Connection TypeNPT
Dimensions4-5/8 " L x 13-3/4 " W x 9-11/16 " H
Enclosure TypeNEMA 7/9
Flow Rate4.8 to 7.7
Frequency Rating50/60
Maximum Velocity10
Pressure Rating300 to 1000
SeriesFS7-4E Series
Switch TypeSPDT
Temperature Rating32 to 300
Voltage Rating120/240
Additional Information
cULus Listed
Features & Benefits
- Brass with sealed tube construction Single pole, double throw snap switch Magnetic switching mechanism eliminates need for bellows Sensitivity adjusting screw makes flow adjustment easy Paddles can be trimmed to suit application needs
McDonnell & Miller FS7-4E Series 120100 Industrial Liquid Flow Switch, 4.8 to 7.7 gpm, 120/240 V, 1-1/4 in NPT, SPDT
BrandMcDonnell & Miller
MFG #120100
Keller #1367666
My Part ##
Last Ordered#
$1,030.00Â /Â ea
