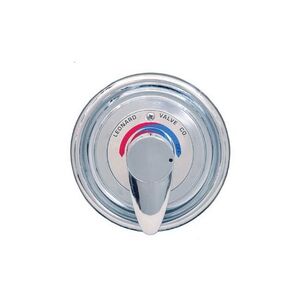

LEONARD® PAM-II-ST-F Pressure Balanced Valve Trim, 1/2 in, Copper Tube, Lever Handle, 1-Handle -Handle
LEONARD® PAM-II-ST-F Pressure Balanced Valve Trim, 1/2 in, Copper Tube, Lever Handle, 1-Handle -Handle
LEONARD® Pressure Balanced Valve Trim, 1/2 in Connection, Copper Tube Connection, Lever Handle, 1-Handle Handles, Stainless Steel, Wall Mounting
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$540.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLEONARD®
Connection Size1/2
Connection TypeCopper Tube
Handle TypeLever
MaterialStainless Steel
Mounting TypeWall
Number of Handles1-Handle
Additional Information
ASSE 1016|ADA Compliant|CSA B.125-16
Features & Benefits
- Durable stainless steel balancing piston to equalize hot and cold supply pressures Built-in shut-off for single handle operation Removable one piece upper and lower valve seat Internal parts of bronze and stainless steel Cast wall flange and lever handle, polished chrome plated 125 psi maximum operating pressure Adjustable high temperature limit stop set for 110 deg F Color coded dial, off through Hot, with directional indicators Minimum flow 1.5 gpm Angle Checkstops, copper tube connection
Documents
Marketing Information
The PAM®-II-ST-F shower valve with angle check stops, copper tube connection is designed with a stainless steel pressure balancing piston, bronze interior and cast bronze body. The PAM automatically shuts down the hot and cold supply, should one or the other fail. All cast trim parts include an ADA approved lever handle and color coded dial plate, wall mounting flange included.
LEONARD® PAM-II-ST-F Pressure Balanced Valve Trim, 1/2 in, Copper Tube, Lever Handle, 1-Handle -Handle
BrandLEONARD®
MFG #PAM-II-ST-F
Keller #1367915
My Part ##
Last Ordered#
$540.00 / ea
