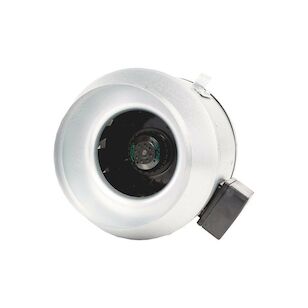

fantech® FKD10XL Mixflow In-Line Fan, 120 V, 4.48 A, 529 W, 2850 rev/min Speed, 1 -Speed, 1265 cu-ft/min
fantech® FKD10XL Mixflow In-Line Fan, 120 V, 4.48 A, 529 W, 2850 rev/min Speed, 1 -Speed, 1265 cu-ft/min
fantech® Mixflow In-Line Fan, 4.48 A, 120 V, 60 Hz, 529 W, 2850 rev/min Speed, 1 -Speed, 1265 cu-ft/min, 10 in Duct, 14 in Dia Housing, 10 in Inlet, 10 in Dia Outlet, 3/4 in W Flange, Sealed Ball Bearing, 140 deg F, Steel, Galvanized, 15 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,181.46 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandfantech®
Amperage Rating4.48
Bearing TypeSealed Ball
Dimensions15 " L
Duct Size10
FinishGalvanized
Flange Size3/4 " W"
Flow Rate1265
Frequency Rating60
Housing Diameter14
IndustryHVAC
Inlet Size10
MaterialSteel
Number of Speeds1
Outlet Size10 " Dia
Power Rating529
Speed Rating2850
Temperature Rating140
Voltage Rating120
Additional Information
AMCA Air and sound, cUL/US Listed
Features & Benefits
- FanTech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers FKD is a mixed flow fan, the fan impeller is a combination between a radial and an axial impeller Brackets are supplied with the fans to make installation or removal easier and prevent the transfer of vibration to the duct Compact design, 100% speed controllable External rotor motor with built-in thermal overload protection and automatic reset Motors enclosed design allows the fan to operate in high moisture, lint and dust laden air Motors are a permanent split capacitor type, with automatic reset thermal protection and sealed ball bearings that protects motors from overheating Excellent heat dissipation to ensure long motor life Terminal box with prewired electrical strip
fantech® FKD10XL Mixflow In-Line Fan, 120 V, 4.48 A, 529 W, 2850 rev/min Speed, 1 -Speed, 1265 cu-ft/min
Brandfantech®
MFG #40013
Keller #1368314
