Grundfos

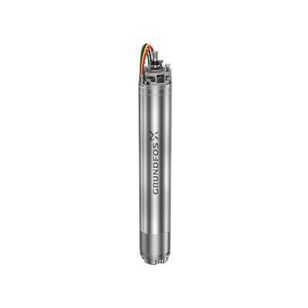

Grundfos 96166162 Submersible Motor, 440/460/480 V, 17.4/16.8/16.6 A, 10 hp, 3450/3470/3480 rpm Speed, 3 ph -Phase

Grundfos 96166162 Submersible Motor, 440/460/480 V, 17.4/16.8/16.6 A, 10 hp, 3450/3470/3480 rpm Speed, 3 ph -Phase
Grundfos

Grundfos 96166162 Submersible Motor, 440/460/480 V, 17.4/16.8/16.6 A, 10 hp, 3450/3470/3480 rpm Speed, 3 ph -Phase

MFG #96166162

Item #1369534

Mfr. Part #96166162

UPC #5711498958432

Grundfos Submersible Motor, 440/460/480 V, 17.4/16.8/16.6 A, 10 hp, 3450/3470/3480 rpm, 3 ph Phase, 60 Hz, IP68 Motor Enclosure, 1/2-20 UNF Bolt Circle Diameter, Direct On Line Starting Method, Class F Insulation Class, 1.15 Service Factor, 0.84/0.83/0.8 Power Factor, Stainless Steel, 104 deg F, 6 in Dia x 24.7 in L

Why Create an Account?

  • Ability to track orders
  • More Options & Savings
  • Amazing Customer Service
$3,764.00 / ea
Out of Stock
Attributes
BrandGrundfos
Amperage Rating17.4/16.8/16.6
Bolt Circle Diameter1/2-20 UNF
Dimensions6 " Dia x 24.7 " L
Frequency Rating60
HP Rating10
Insulation ClassClass F
MaterialStainless Steel
Motor Enclosure TypeIP68
Phase3
Power Factor0.84/0.83/0.8
Service Factor1.15
Speed Rating3450/3470/3480
Starting MethodDirect On Line
Temperature Rating104
Voltage Rating440/460/480
