• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance Inlet/outlet gauge ports, gauge not included Globe body pattern with class 150 flanged end connections Low-flow bypass range 20-200 psi

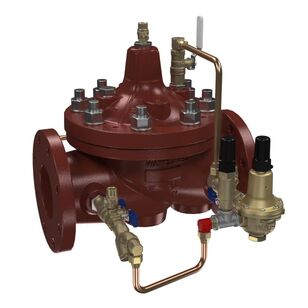

This 6 inch ACV is armed with ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits the possibility of damaging high inlet pressure from passing through the valve to downstream piping. This Mustang valve style has a globe body pattern with class 150 flanged end connections, configured with inlet and outlet gauge ports. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve with 20-200 psi adjustment range
