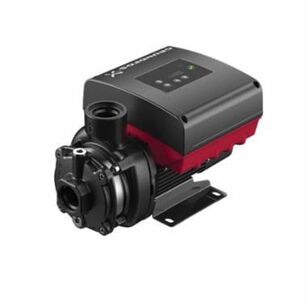

Grundfos CME Series CME 10-1 99329818 Multi-Stage End Suction Centrifugal Pump With Integrated Frequency Converter
Grundfos CME Series CME 10-1 99329818 Multi-Stage End Suction Centrifugal Pump With Integrated Frequency Converter
Grundfos Multi-Stage End Suction Centrifugal Pump, Series: CME, Model: CME 10-1, 200 to 240 V, Amperage Rating: 6.7 to 5.6 A, 50/60 Hz Frequency, HP Rating: 1.48 hp, Phase: 1 ph, 1-1/2 in Inlet Connection, Outlet Connection Size: 1-1/2 in, 52.8 gpm Flow Rate, Maximum Pressure: 145.04 psi, 3480 rpm Speed, Motor Speed Rating: 360 to 4000 rpm, Service Factor: 1, -4 to 194 deg F, Ball Bearing, Frame: 80B, Cast Iron/EPDM/Silicon Carbide/Stainless Steel Housing, 13.8 in Overall Length, 7.01 in Overall Width, 10.2 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,468.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating6.7 to 5.6
Bearing TypeBall
Flow Rate52.8
Frame80B
Frequency Rating50/60
Housing MaterialCast Iron/EPDM/Silicon Carbide/Stainless Steel
HP Rating1.48
Inlet Connection Size1-1/2
Maximum Pressure145.04
ModelCME 10-1
Motor Speed Rating360 to 4000
Outlet Connection Size1-1/2
Overall Height10.2"
Overall Length13.8
Overall Width7.01
Phase1
SeriesCME
Service Factor1
Speed Rating3480
Temperature Rating-4 to 194
Voltage Rating200 to 240
Additional Information
AISI 304 Specified | ACS/EAC/WRAS Approved | ASTM A48-25A Specified | CE Marked | EN 1.4301/GJL-200 Specified | NSF 61 Certified | UL Recognized
Features & Benefits
- Nordlock© washer ensures secure clamping of pump impellers and provides quick and easy assembly and disassembly Grundfos designed mechanical O-ring shaft seal offers superior dry running capabilities and reduced sticking problems Encapsulated sleeve O-ring design retains O-ring when temperature change causes expansion and contraction Labyrinth seal provides protection for motor bearings and reduces maintenance Filling plug is sealed by O-ring for easy maintenance Energy consumption reduced by up to half compared to fixed speed pumps Reduced installation and wiring cost The functionalities are designed for specific pump applications Wide range of control parameters
Documents
Marketing Information
Compact, reliable, horizontal, multi-stage, end suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 1 ph, fan cooled, permanent magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
Grundfos CME Series CME 10-1 99329818 Multi-Stage End Suction Centrifugal Pump With Integrated Frequency Converter
BrandGrundfos
MFG #99329818
Keller #1373813
My Part ##
Last Ordered#
$3,468.00 / ea
