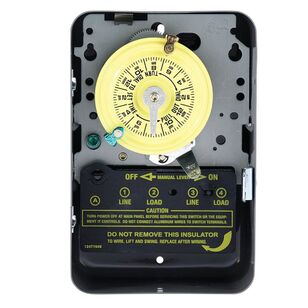

24-Hour Mechanical Time Switch, 120 VAC, 60Hz, 1 NO/1 NC, SPDT, Indoor Metal Enclosure, 1 Hour Interval
24-Hour Mechanical Time Switch, 120 VAC, 60Hz, 1 NO/1 NC, SPDT, Indoor Metal Enclosure, 1 Hour Interval
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth3.63"
Height7.88"
ItemApplicationCompatibilities_enLED, HID
ItemCSACertificationFileNumberC22.2-177, LR3730
ItemElectronicBallastLoadRatings_en16 A, 120 VAC
ItemElectronicBallastLoadRatingsRanges_en16 A, 120 VAC
ItemEnclosureType_enIndoor type 1 metal
ItemHasManualOverrideCVL_enYes
ItemInductiveLoadRatings_en40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
ItemInputVoltageRanges_en120 VAC, 60 Hz
ItemKnockoutDimensionsBack_en(1) combination 0.5 " - 0.75 "
ItemKnockoutDimensionsBottom_en(2) combination 0.5 " - 0.75 "
ItemMarket_enCommercial, Industrial
ItemMaximumOnOffOperations_en12
ItemMinimumOnOffTime_en1 hr
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en1
ItemNumberOfTrippersIncluded_en1 ON/1 OFF
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationMode_en24 hr
ItemPilotDutyLoadRatings_en1000 VA, 120-240 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-240 VAC, 60 Hz
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn3.625
ItemProductDepthMm87.3
ItemProductHeightIn7.875
ItemProductHeightMm200
ItemProductWidthIn5.125
ItemProductWidthMm130.2
ItemResistiveLoadRatings_en40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
ItemSkipperWheelOperationMode_enNot Included
ItemSwitchType_en1 NO/1 NC, SPDT
ItemTungstenLoadRatings_en40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en40 A, 120-240 VAC, 60 Hz
ItemULCerficationFileNumberUL917
ItemWireSizeMax_enNo. 8 AWG
ItemWireSizeMin_enNo. 14 AWG
ItemWiringOption_enTerminals
ModelItt-t105
Width5.13"
Shipping Dimensions (L x W x H)5.5" x 3.5" x 8.25"
Additional Information
LED|cULus|cCSAus
Features & Benefits
- Direct 24-hour control of most loads Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour Manual override One ON and one OFF tripper included Can be installed in most Intermatic enclosures
Documents
Marketing Information
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
24-Hour Mechanical Time Switch, 120 VAC, 60Hz, 1 NO/1 NC, SPDT, Indoor Metal Enclosure, 1 Hour Interval
BrandIntermatic®
MFG #T105
Keller #1373895
