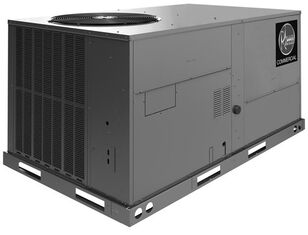

RUUD® RACCZR060ACT000ACBA0 Air Conditioner Package Unit, 60000 Btu/hr Nominal, 60000 Btu/hr Cooling BTU, 208/230 V, 34 A
RUUD® RACCZR060ACT000ACBA0 Air Conditioner Package Unit, 60000 Btu/hr Nominal, 60000 Btu/hr Cooling BTU, 208/230 V, 34 A
RUUD® Air Conditioner Package Unit, 60000 Btu/hr Nominal Capacity, 17.58 kW Cooling Capacity, 60000 Btu/hr Cooling, 208/230 V, 34 A, 1-1/2 hp, 2000 cfm Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, 11.2 EER Rating, 14 SEER, 1 Speed, 83.3 dB Sound Level, Direct, Constant Torque Drive, 2 x 16 x 16 in Filter, 45 A Fuse Rating, 125 deg F, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17,799.22 / ea
Out of Stock
- Attributes
- Features & Benefits
Attributes
BrandRheem®
Amperage Rating34
Compressor TypeScroll
Cooling BTU Rating60000
Cooling Capacity17.58
Dimensions41-3/8 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect, Constant Torque
EER Rating11.2
Filter Size2 x 16 x 16
Frequency Rating60
Fuse Rating45
HP Rating1-1/2
Nominal Capacity60000
Number of Speeds1
Phase3
Rotational Speed2000
SEER Rating14
Sound Level83.3
Temperature Rating125
Voltage Rating208/230
Features & Benefits
- Factory charged with R-410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Convertible airflow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Cooling operation up to 125degF ambient MicroChannel evaporator and condenser coil PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, Qwik-Clean Drain Pan™ Over-flow condensate sensor PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid-core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in Smart Logic Insulation encapsulated throughout entire unit New product footprint with matching connections
RUUD® RACCZR060ACT000ACBA0 Air Conditioner Package Unit, 60000 Btu/hr Nominal, 60000 Btu/hr Cooling BTU, 208/230 V, 34 A
BrandRheem®
MFG #RACCZR060ACT000ACBA0
Keller #1375004
My Part ##
Last Ordered#
$17,799.22 / ea
