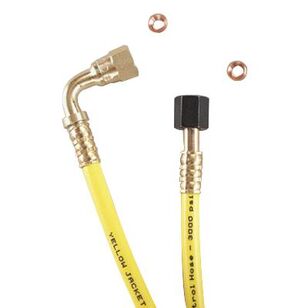

Yellow Jacket® 78636 High-Pressure Control Hose, Straight, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L
Yellow Jacket® 78636 High-Pressure Control Hose, Straight, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L
Yellow Jacket® High-Pressure Control Hose, 1/4 in Nominal, 0.156 in Inside Diameter, 0.325 in Outside Diameter, 600 lbf/sq-in, -49 to 266 deg F, Straight Connection, For Use With: R-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, HCFC R-22 Refrigerants, 36 in Length
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$85.66 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandYellow Jacket®
Connection TypeStraight
IndustryHVAC
Inside Diameter0.156
Length36
Nominal Size1/4
Outside Diameter0.325
Pressure Rating600
Suitable For Use WithR-134A, R-404A, R-407A, R-407B, R-407C, R-410A, R-507, HCFC R-22 Refrigerants
Temperature Rating-49 to 266
Features & Benefits
- Between the inner tube and the cover the hose is reinforced with a polyester braid of high tensile strength with high modulus, giving it the ability to withstand higher pressures Hex nuts are steel and finished with black zinc, copper gaskets provide the best possible seal Improved permeation characteristics, R-134a permeation tested at 0.188 oz/ft/yr Results with other refrigerants will also show superior performance characteristics The Yellow Jacket pressure control hose is constructed of a thermoplastic polymer inner tube and cover This new material eliminates the vibration problems that are present in copper capillary tube installations The higher temperature ratings of this thermoplastic to 266 deg F eliminate the failures caused by maximum load conditions on rubber type pressure control hoses Usable oil types include polyol ester, alkylbenzene and mineral oils
Yellow Jacket® 78636 High-Pressure Control Hose, Straight, 1/4 in Nominal, 0.156 in ID, 0.325 in OD, 36 in L
BrandYellow Jacket®
MFG #78636
Keller #1375307
