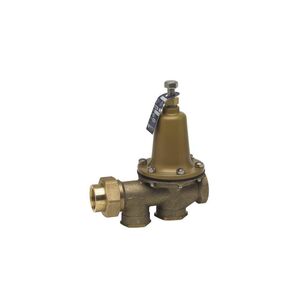

WATTS® LF25AUB-Z3 Series 0009439 Pressure Reducing Valve, 2 in Nominal, FNPT x FNPT, 300 psi, 33 to 180 deg F
WATTS® LF25AUB-Z3 Series 0009439 Pressure Reducing Valve, 2 in Nominal, FNPT x FNPT, 300 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LF25AUB-Z3 Series, 2 in Nominal, FNPT x FNPT Connection, 300 psi, Water Media, Silicone Body, Stainless Steel Seat, EPDM Disc, Lead-Free, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,926.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialSilicone
Connection TypeFNPT x FNPT
Disc MaterialEPDM
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size2
Pressure Rating300
Seat MaterialStainless Steel
SeriesLF25AUB-Z3 Series
Temperature Rating33 to 180
Shipping Dimensions (L x W x H)11.75" x 7" x 12.44"
Additional Information
ASSE 1003|CSA Certified|NSF/ANSI 61 Annex G|UPC Certified
Features & Benefits
- Double unions, gauge tapping and plug Sealed spring cage with stainless steel cage screws Integral stainless steel strainer removable for cleaning Replaceable seat module
Documents
Marketing Information
This 2 inch bronze water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LF25AUB-Z3 Series 0009439 Pressure Reducing Valve, 2 in Nominal, FNPT x FNPT, 300 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009439
Keller #1377796
My Part ##
Last Ordered#
$3,926.00 / ea
