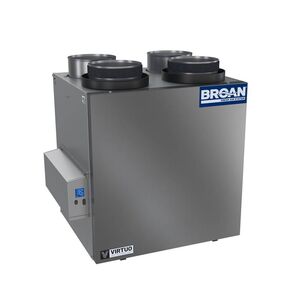

AI Series 160 CFM Energy Recovery Ventilator (ERV)
AI Series 160 CFM Energy Recovery Ventilator (ERV)
AI Series 160 CFM Energy Recovery Ventilator (ERV)
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,511.89Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandBROAN NuTone
Apparent Sensible Efficiency At 32f Percent81 Percent (38 CFM)
Certification File NoE147773
CollectionAi Series
Constant AirflowYes
Contain Electronic EquipmentYes
Core Warranty5 years
Defrost TypeRecirculating
Energy Star RatedYes
Filter TypeFoam
Filtration LevelMERV 8 Part No. SV66133
FinishGalvanized
Height21.5"
Hvi CertifiedYes
IndustryHVAC
Installation TypeUniversal Brackets or Chain
Ista RatingISTA - 1A
Length16.3"
MaterialGalvanized
Min Max Continuous Airflow Cfm At 0 2 W G35-150
Min Max Continuous Airflow Cfm At 0 4 W G35-142
Motor Engineered For Cont OperationsYes
Motor TypePMSM
Optional Filtration LevelsMERV 13 Part No. V24285
OversizedTrue
Ports LocationTop
Ports Size6'' Round
Power Consumption Watts At Max Rated Sre15W (38 CFM)
Product LineBroan
Prop 65 WarningYes
Prop 65 Warning LabelYes
Sensible Recovery Efficiency At 13f Percent56 Percent (66 CFM)
Sensible Recovery Efficiency At 32f Percent76 Percent (38 CFM)
System TypeERV
Total Recovery Efficiency At 95f Percent66 Percent (40 CFM)
Ul ListedYes
Unit Electrical Watts163
Wall Control CompatibiltyVTTOUCHW| VAUTOW| VTDEHUMW| VTSPEEDW| VBTAHW| VBATHBTW
Weight37 lbs.
Width21"
Shipping Dimensions (L x W x H)2.08" x 1.6" x 2.19"
Features & Benefits
- By continuously monitoring changing indoor and outdoor conditions, the AI Series with VIRTUO Air Technology, provides fresh, filtered and healthy air throughout the home
- MERV 8 filters are installed standard, Capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort, Even more powerful filtration is available with an optional MERV 13 filter upgrade
- Powerful, reliable and quiet PMSM ECM fan motors provide up to 60 Percent energy savings compared to other units on the market
- Developed on a compact, universal platform with several mounting and port options to save space and reduce install time
- With a selectable airflow speed range from 35 - 160 CFM, this AI Series model will meet the needs of a medium-large size home
- Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes
AI Series 160 CFM Energy Recovery Ventilator (ERV)
BrandBROAN NuTone
MFG #B160E65RT
Keller #1379173
My Part ##
Last Ordered#
$2,511.89Â /Â ea
