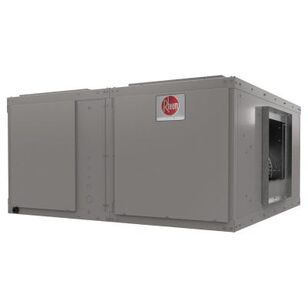

Rheem® RHCLA2180CBS Commercial Split Air Handler, 180000 Btu/hr, 172000 Btu/hr Cooling, 6000 cfm, 208/230 V, 5.8 A, 2 hp
Rheem® RHCLA2180CBS Commercial Split Air Handler, 180000 Btu/hr, 172000 Btu/hr Cooling, 6000 cfm, 208/230 V, 5.8 A, 2 hp
Rheem® Commercial Split Air Handler, RHCLA Classic® Series, 180000 Btu/hr Nominal Capacity, 172000 Btu/hr Cooling Capacity, 208/230 V Voltage Rating, 5.8 A Amperage Rating, 2 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 1750 rpm Rotational Speed, 6000 cfm Rating, Horizontal, Vertical Configuration, 11 EER Rating, 14.2 IEER Rating, Connection Type: NPT, R-410A Refrigerant Type, 15 A Fuse Rating, 7/8 in Connection, 5/8 in Liquid Line Size, 1-5/8 in Suction Line Size, 20 x 25 x 1 in Filter Size, 2 Number of Stages, 16.5 sq-ft Coverage Area, 2 Number of Speeds, Steel, Galvanized, 27 in H x 52 in W Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17,381.87 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating5.8
CFM Rating6000
ConfigurationHorizontal, Vertical
Connection Size7/8
Connection TypeNPT
Cooling Capacity172000
Coverage Area16.5
Dimensions27 " H x 52 " W
EER Rating11
Filter Size20 x 25 x 1
FinishGalvanized
Frequency Rating60
Fuse Rating15
HP Rating2
IEER Rating14.2
IndustryHVAC
Liquid Line Size5/8
MaterialSteel
Nominal Capacity180000
Number of Speeds2
Number of Stages2
Phase3
Refrigerant TypeR-410A
Rotational Speed1750
SeriesRHCLA Classic Series
Suction Line Size1-5/8
Voltage Rating208/230
Additional Information
AHRI Certified|cULus Listed|DOE Energy Policy Act 1992
Features & Benefits
- CABINET-Powder coat painted. Matching discharge plenums and decorative supply and return air grilles are available for use when units are to be installed within conditioned space MOTOR-Inherently protected motors are mounted inside of insulated cabinet to reduce motor noise. A choice of motor horsepowers and drive combinations are available to allow you to meet specified CFM at various static pressures up to 2 in [.498 kPa] external static pressure LOW PROFILE-Allows for horizontal installation in most standard drop ceiling applications, and the movement of units through most standard doorways for addition or replacement work THERMAL EXPANSION VALVES-Standard all model FILTERS-One inch [25 mm] throwaway filters are standard, but filter racks are designed to accept either one inch [25 mm] or two inch [51 mm] filters EVAPORATOR COIL-Two circuit, interlaced row split coils are constructed with copper tubes and aluminum fins mechanically bonded to the tubes for maximum heat transfer capabilities. All coil assemblies are leak tested up to 450 PSIG [3100 kPa] internal pressure prior to installation into units VARIABLE FREQUENCY DRIVE-Provides 2-stage airflow for improved part load efficiency. Meets California Title 24 requirements REFRIGERANT CONNECTIONS-Field piping connections are made through a fixed post between two side access panels on either side of the unit. Allows flexibility to meet most field conditions as well as full accessibility after the installation is complete. Units may be used with two straight cool condensing units or single circuit manifolded in the field using the copper fittings shipped with each unit DRAIN PAN-The galvanized steel drain pan is designed to trap condensate in either vertical or horizontal installations. Condensate drain connections are located on both sides of the unit allowing complete flexibility to meet most field conditions SERVICE ACCESS-Two removable panels on top and each side of the unit are easily removed for access to motors, blowers, sheaves and filters HORIZONTAL OR VERTICAL-All models are designed for either application and can be installed in either position as supplied from the factory TESTING-All units are run tested at the factory prior to shipment. Units are shipped with a holding charge of nitrogen
Rheem® RHCLA2180CBS Commercial Split Air Handler, 180000 Btu/hr, 172000 Btu/hr Cooling, 6000 cfm, 208/230 V, 5.8 A, 2 hp
BrandRheem®
MFG #RHCLA2180CBS
Keller #1380410
My Part ##
Last Ordered#
$17,381.87 / ea
