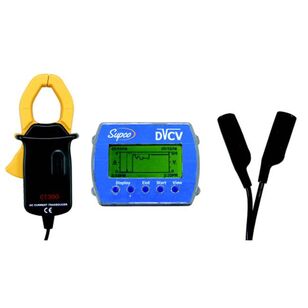

Supco® DVCV Data View Current and Voltage Logger, 1 to 600 V, 1 to 300 A, +/-0.4 V Accuracy
Supco® DVCV Data View Current and Voltage Logger, 1 to 600 V, 1 to 300 A, +/-0.4 V Accuracy
Supco® Data View Current and Voltage Logger, 1 to 600 V, 1 to 300 A, +/-0.4 V Accuracy, 0.2 A, 0.2 V Resolution, Backlit LCD Display, 1 s to 9 hr Sampling, Alkaline Battery, 5 to 160 deg F, 15 to 150 deg F, 4 x 3.05 x 1.5 in, Additional Information: AA Battery Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$639.29 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSupco®
Accuracy+/-0.4
Additional InformationAA Battery Size
Amperage Rating1 to 300
Battery TypeAlkaline
Dimensions4 x 3.05 x 1.5"
Display TypeBacklit LCD
Resolution0.2 A, 0.2 V
Sampling Rate1 s to 9 hr
Temperature Rating5 to 160 deg F, 15 to 150 deg F
Voltage Rating1 to 600
Shipping Dimensions (L x W x H)10" x 6" x 3.5"
Features & Benefits
- Text display for real time current, voltage and watts, logging summary, s A le rate, memory used and memory remaining Graph display shows trends in measurements, with a scrolling feature Data exportable to text or excel files 30 character user ID field Recording start, on button, immediate after setup or user specified date and time System requirements - 5MB free disk space, 800 x 600 screen resolution, (1) free USB port Visual over and under alarm indicators Compatible with Windows 2000, XP, Vista and Windows 7/8 and 10, 32 and 64 bit systems User selectable sample intervals 1 sec to 9 hr Memory roll over or stop on memory full Battery level indicator 43344 data points for current or voltage, 21672 for BOTH current and voltage Battery life - one-year continuous use, two-year average use, the logger automatically turns itself off after 1 hr, when not logging, turn on by pressing any button Measurement type - True RMS up to the 21st harmonic at 60 Hz
Documents
Marketing Information
Instantly record and view critical performance parameters with the data view series DVCV for current, voltage and watts. Monitor real time measurements and download to your PC for further analysis.
Supco® DVCV Data View Current and Voltage Logger, 1 to 600 V, 1 to 300 A, +/-0.4 V Accuracy
BrandSupco®
MFG #DVCV
Keller #1381437
My Part ##
Last Ordered#
$639.29 / ea
