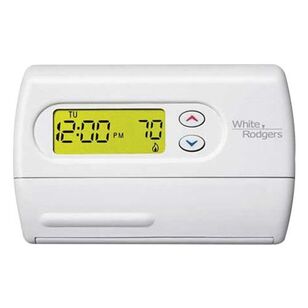

WHITE-RODGERS™ Classic 80 Series 1F86-344 Thermostat, mV to 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A
MFG #1F86-344
Item #138225
Mfr. Part #1F86-344
UPC #786710520266
WHITE-RODGERS™ Thermostat, Classic 80 Series, mV to 30 VAC Battery, 20 to 30 VAC Hardwire, 1 to 1.5 A, 1.5 to 45 W Power, 50/60 Hz Frequency, Changeover: Manual, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 2.2 sq-in Display, 0.6 or 1.5 deg F Heating, 1.2 deg F Cooling Conventional Systems, 0.75 or 1.2 deg F Heating and Cooling Heating Pump Differential, 45 to 99 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, +/-1 deg C Accuracy, Battery, Hardwired Power Source, Horizontal Mounting, Dimensions: 3-7/8 in H x 6 in W x 1-3/16 in D, White
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$121.92 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating1 to 1.5
ChangeoverManual
ColorWhite
Differential Temperature0.6 or 1.5 deg F Heating, 1.2 deg F Cooling Conventional Systems, 0.75 or 1.2 deg F Heating and Cooling Heating Pump
Voltage RatingmV to 30 VAC Battery, 20 to 30 VAC Hardwire
Additional Information
NEC Class II, Energy Aware Qualified
Features & Benefits
Fossil fuel or electric heat compatible
Large LCD with backlight
Permanent program retention during power loss
Configuration menu allows keypad selection of options
Selectable celsius or fahrenheit temperature display
Selectable energy management recovery/early start program
Milli-volt compatible
32 - 99 deg F display temperature range
