RectorSeal® 96418 Surge Protective Device, 120/240 V, 60 A, 50 kA Max Discharge Current, 200 kA Short Circuit
RectorSeal® 96418 Surge Protective Device, 120/240 V, 60 A, 50 kA Max Discharge Current, 200 kA Short Circuit
RectorSeal® Surge Protective Device, 120/240 V, 60 A, 50 kA Maximum Discharge, 10 kA Normal Discharge Current, 200 kA Short Circuit, For Use With: Outside Condensing Units, Indoor Air Handlers
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$261.81 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRectorSeal®
Amperage Rating60
IndustryHVAC
Maximum Discharge Current50
Normal Discharge Current10
Short Circuit Rating200
Suitable For Use WithOutside Condensing Units, Indoor Air Handlers
Voltage Rating120/240
Additional Information
cULus Listed|RoHS Compliant
Features & Benefits
- Fused disconnect box Long-lasting gas discharge tube technology TFMOV technology Green LED easily indicates protection Designed to protect all single phase, 120/240 V air conditioning, heat pumps and ductless mini-split systems (DMSS) from transient over voltage and natural cause surges
Marketing Information

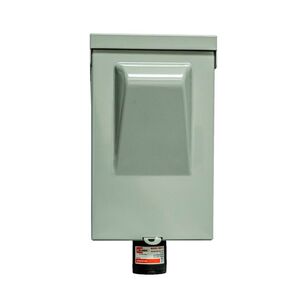

Disconnect box with a pre-installed RSH-50 surge protector. Our RSH-50 is tabbed into the disconnect, to avoid any potential code violations with multiple wires being lugged in.
RectorSeal® 96418 Surge Protective Device, 120/240 V, 60 A, 50 kA Max Discharge Current, 200 kA Short Circuit
BrandRectorSeal®
MFG #96418
Keller #1382518
My Part ##
Last Ordered#
$261.81 / ea
