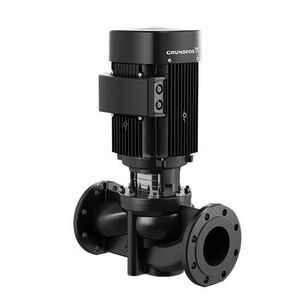

Grundfos TP Series TP 50-160/2 97655481 Circulator Pump, 92.5 gpm, 1.1 kW, 115/208-230 V, 8.6 to 9.5/17 A, 60 Hz, Iron
Grundfos TP Series TP 50-160/2 97655481 Circulator Pump, 92.5 gpm, 1.1 kW, 115/208-230 V, 8.6 to 9.5/17 A, 60 Hz, Iron
Grundfos Circulator Pump, TP Series, Model: TP 50-160/2, 92.5 gpm Flow Rate, 1.1 kW, 115/208-230 V, 8.6 to 9.5/17 A, 60 Hz, 145.04 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 1.3 Service Factor, 1-1/2 hp, 2 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, -13 to 140 deg F, Iron, Finish: Electro-Coated, 20-3/8 in H x 14 in W, Additional Information: B Insulation Class, 1-Stage, Baldor Motor, Stainless Steel Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,983.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationB Insulation Class, 1-Stage, Baldor Motor, Stainless Steel Impeller Material
Amperage Rating8.6 to 9.5/17
Connection Size2
Connection TypeFlanged
Dimensions20-3/8 " H x 14 " W
FinishElectro-Coated
Flow Rate92.5
Frequency Rating60
HP Rating1-1/2
IndustryHydronics
MaterialIron
Maximum Pressure145.04
ModelTP 50-160/2
Motor Speed Rating3450
Number of Poles2
Phase1
Power Rating1.1
SeriesTP Series
Service Factor1.3
Temperature Rating-13 to 140
Voltage Rating115/208-230
Additional Information
AISI 304|ASTM 25B|CSA Certified|DIN W.-Nr. 1.4301|EN JL1040|UL Listed
Features & Benefits
- Single stage centrifugal inline single head pump Neck rings and impeller made of stainless steel Cataphoresis treatment Shell coupling Top pull out principle for easy maintenance Optimized hydraulics Inline design with opposite suction and discharge ports enabling mounting in pipework or on a concrete foundation Corrosion-resistant maintenance-free mechanical shaft seal
Documents
Marketing Information
Grundfos TP pumps are single-stage, close coupled inline centrifugal pumps with mechanical shaft seal and primely for applications such as heating, cooling, district energy. The pumps are fitted with fixed speed motors.
Grundfos TP Series TP 50-160/2 97655481 Circulator Pump, 92.5 gpm, 1.1 kW, 115/208-230 V, 8.6 to 9.5/17 A, 60 Hz, Iron
BrandGrundfos
MFG #97655481
Keller #1382895
My Part ##
Last Ordered#
$4,983.00Â /Â ea
