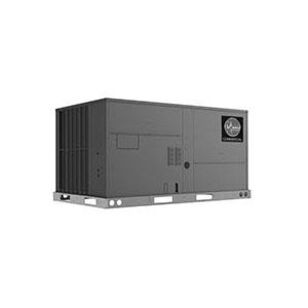

Rheem® Ovation Series RHPCZR060ADT000ACAA0 Commercial Packaged Heat Pump, 60000 Btu/hr Nominal, 57500 Btu/hr Heating
Rheem® Ovation Series RHPCZR060ADT000ACAA0 Commercial Packaged Heat Pump, 60000 Btu/hr Nominal, 57500 Btu/hr Heating
Rheem® Commercial Packaged Heat Pump, RHPCZR Commercial Achiever® Series, 60000 Btu/hr Nominal Capacity, 59500 Btu/hr Cooling BTU Rating, 57500 Btu/hr Heating BTU Rating, 460 V Voltage Rating, 16 A Amperage Rating, 1/2 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 1075 rpm Rotational Speed, Scroll Compressor Type, 5900 cfm Rating, 14 SEER Rating, 8 HSPF Rating, 11 EER Rating, Convertible Configuration, 3/4 in Connection, R-410A Refrigerant Type, 1 Number of Stages, 15 A Fuse Rating, 83.3 dB Sound Level, Direct Drive Type, 23 Fins per Inch, 2 x 16 x 16 in Filter Size, Sheet Metal, 125 deg F Temperature Rating, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$18,789.13 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating16
CFM Rating5900
Compressor TypeScroll
ConfigurationConvertible
Connection Size3/4
Cooling BTU Rating59500
Dimensions41-3/8 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect
EER Rating11
Filter Size2 x 16 x 16
Fins per Inch23
Frequency Rating60
Fuse Rating15
Heating BTU Rating57500
HP Rating1/2
HSPF Rating8
MaterialSheet Metal
Nominal Capacity60000
Number of Stages1
Phase3
Refrigerant TypeR-410A
Rotational Speed1075
SEER Rating14
SeriesRHPCZR Commercial Achiever Series
Sound Level83.3
Temperature Rating125
Voltage Rating460
Additional Information
AHRI Certified|ASHRAE 90.1 2019|cULus Listed
Features & Benefits
- Factory charged with R-410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection 6 Ton includes a single 2-stage compressor 3-5 Ton includes one single-state compressor Convertible airflow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient MicroChannel evaporator and condenser coil PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, Qwik-Clean Drain Pan™ Over-flow condensate sensor PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid-core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in Smart Logic
Rheem® Ovation Series RHPCZR060ADT000ACAA0 Commercial Packaged Heat Pump, 60000 Btu/hr Nominal, 57500 Btu/hr Heating
BrandRheem®
MFG #RHPCZR060ADT000ACAA0
Keller #1383865
My Part ##
Last Ordered#
$18,789.13 / ea
