EIA-456-A|IEC 60252-1:2001|RoHS Compliant|UL 810|cULus Listed

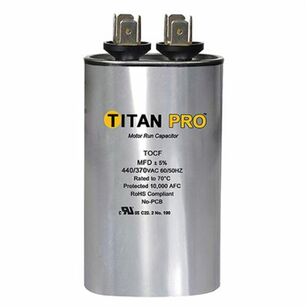

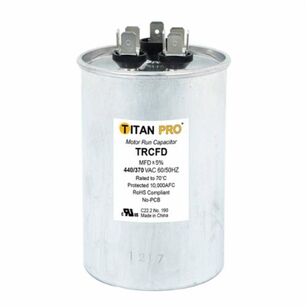

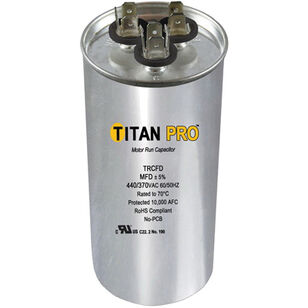

• Reliable operational life Flexible - Titan Pro 440/370 V design reduces inventory Built to the toughest international standards for AC motor run capacitors including EIA 456A and IEC 60252-1:2001 100% electrical testing Reinforced: Heavy edge metalized polypropylene film is used for the dielectric, the dielectric coils are impregnated under vacuum and high-temperature with a proprietary biodegradable oil, second generation anti-explosion safety switch Application requirements - less than or equal to 2000 m altitude, residual voltage while loadings less than 10% of rated voltage, permissible maximum current is less than 1.3 times of rated current

Our pro is 100% electrically tested to withstand whatever is thrown at it. TITAN PRO® is built from quality, proprietary materials such as a heavy edge aluminum/zinc polypropylene film which helps prevent the degrading effects which may otherwise cause premature failure.
