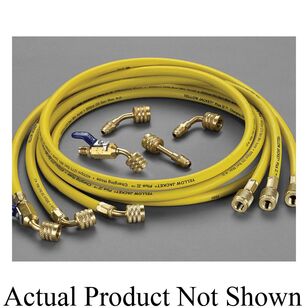

Yellow Jacket® A2L PLUS II™ 30460 45 deg Ball Valve Hose, Female SAE Flared, 60 in L
Yellow Jacket® A2L PLUS II™ 30460 45 deg Ball Valve Hose, Female SAE Flared, 60 in L
Yellow Jacket® 45 deg Ball Valve Hose, 800 psi, -20 to 180 deg F, 6 in Bend Radius, 1/4 in Connection, Female SAE Flared Connection Type, For Use With: Left-Handed A2L Refrigerant Tanks, 60 in Length
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$131.11 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandYellow Jacket®
Bend Radius6
Connection Size1/4
Connection TypeFemale SAE Flared
IndustryHVAC
Length60
Pressure Rating800
Suitable For Use WithLeft-Handed A2L Refrigerant Tanks
Temperature Rating-20 to 180
Additional Information
UL File No. SA2337
Features & Benefits
- Conversion adapters from 1/4" Female SAE flare left-handed (LH) x 1/4" Female SAE flare right-handed for A2L refrigerants Easily identified by double ring on tightening knurl for LH connection The moisture barrier provides improved resistance to moisture migration which contaminates expensive refrigerants 1/4" PLUS II™ hoses are rated for 4000 psi (276 bar) minimum burst, 800 psi (55 bar) maximum working pressure and an operating temperature of -20 deg to 180 deg F (-28.8 deg to 82.2 deg C) UL recognized hose assemblies (File SA9737) Nylon permeation barrier meets SAE requirements J2196 for CFC, HCFC and HFC refrigerant Minimum bend radius: 6" (152 mm) Made in the USA
Documents
Marketing Information
The A2L refrigerants, R-32 and R-454B, have adopted left-handed connections for their tanks. These new refrigerants are categorized as slightly flammable, so left-handed connections were implemented to differentiate them from A1, non-flammable refrigerants. As the industry adopts these new refrigerants, YELLOW JACKET® A2L Tank Adapters and Charging Hoses incorporate left-handed connections so a service technician can safely charge A2L refrigerant systems.
Yellow Jacket® A2L PLUS II™ 30460 45 deg Ball Valve Hose, Female SAE Flared, 60 in L
BrandYellow Jacket®
MFG #30460
Keller #1389831
