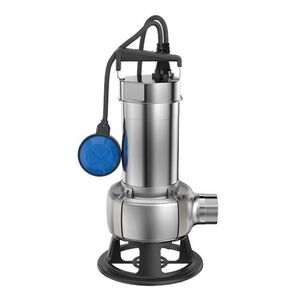

Grundfos UNILIFT AP35B.50.08.A1V 96846962 Submersible Effluent Pump, 220 to 230 V, 6.74 A, 60 Hz, 1.97 hp, 83.7 gpm
Grundfos UNILIFT AP35B.50.08.A1V 96846962 Submersible Effluent Pump, 220 to 230 V, 6.74 A, 60 Hz, 1.97 hp, 83.7 gpm
Grundfos Submersible Effluent Pump, Model: UNILIFT AP35B.50.08.A1V, 220 to 230 V, 6.74 A, 60 Hz Frequency, HP Rating: 1.97 hp, 3330 rpm Speed, 83.7 gpm Flow Rate, 1 ph, 2 in Discharge, 25 ft Cord Length, Maximum Feet of Head: 42.65 ft, Insulation Class: F, Free-Standing Mounting, 32 to 104 deg F, Stainless Steel Impeller, Dimensions: 9.21 in L x 8.27 in W x 18.43 in H, Stainless Steel, Additional Information: IP68 Enclosure
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,300.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationIP68 Enclosure
Amperage Rating6.74
Cord Length25
Dimensions9.21 " L x 8.27 " W x 18.43 " H
Discharge Size2
Flow Rate83.7
Frequency Rating60
HP Rating1.97
Impeller MaterialStainless Steel
Insulation ClassF
MaterialStainless Steel
Maximum Feet of Head42.65
ModelUNILIFT AP35B.50.08.A1V
Mounting TypeFree-Standing
Phase1
Speed Rating3330
Temperature Rating32 to 104
Voltage Rating220 to 230
Additional Information
AISI 304 Specified|EN 1.4301 Specified|CCSAUS Certified
Marketing Information
Vertical single-stage stainless steel submersible pump with integrated submersible 1 ph motor. The pump is fitted with ring stand and carrying handle and is supplied with a 25 ft mains cable and a level switch for automatic start and stop. The impeller is a VORTEX impeller for surface water, groundwater, wastewater and similar liquids. The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil. The motor is insulation class F with thermal overload protection and has long life deep groove greased for life ball bearings. ready for installation either-free standing or on an auto coupling system.
Grundfos UNILIFT AP35B.50.08.A1V 96846962 Submersible Effluent Pump, 220 to 230 V, 6.74 A, 60 Hz, 1.97 hp, 83.7 gpm
BrandGrundfos
MFG #96846962
Keller #1391577
