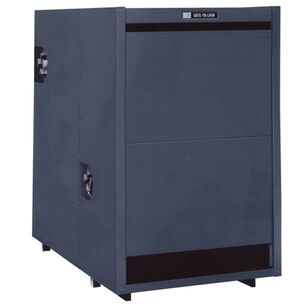

Weil-McLain® LGB, 2 Series 133-084-304 Gas Fired Steam Boiler, 85.1 % AFUE, Natural Gas Fuel, 3 in Supply/Return
Weil-McLain® LGB, 2 Series 133-084-304 Gas Fired Steam Boiler, 85.1 % AFUE, Natural Gas Fuel, 3 in Supply/Return
Weil-McLain® Gas Fired Steam Boiler, LGB, 2 Series, 85.1 % AFUE, 910000 Btu/hr Input, 724000 Btu/hr Output BTU, 46 gal Steam to Water-Line, 73 gal Water Capacity, 3 in Supply/Return Connection, Natural Gas Fuel, Atmospheric (Chimney) Vent, Chimney/Breeching/Vent Size: 14 in ID, Intermittent Electronic, Pilot Ignition, Net BTU Rating: 543000 Btu/hr, 2264 sq-ft Area, Cast-Iron, Dimensions: 50-3/8 in H x 41 in W x 64-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22,692.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeil-McLain®
AFUE Rating85.1
Area2264
BTU Rating910000 Btu/hr Input, 724000 Btu/hr Output
Capacity46 gal Steam to Water-Line, 73 gal Water
Chimney/Breeching/Vent Size14 " ID
Connection Type3 " Supply/Return
Dimensions50-3/8 " H x 41 " W x 64-1/2 " D
Fuel TypeNatural Gas
Ignition TypeIntermittent Electronic, Pilot
IndustryHydronics
MaterialCast-Iron
Net BTU Rating543000
SeriesLGB, 2 Series
Vent TypeAtmospheric (Chimney)
Additional Information
AHRI Certified, ASME Approved, CSA Certified
Features & Benefits
- Short draw rods permits faster easier assembly of boiler section Compact design allows for more piping and venting headroom Highest efficiency commercial cast iron atmospheric gas boiler Built-in air separator diverts air to the expansion tank Gas natural draft water and steam boiler with cast iron sections Factory assembled base and burners reduce installation time Simplified piping, the largest LGB steam boiler requires only two risers Built-in air separator in water boiler air is diverted to the expansion tank through a 1 in tapping next to supply outlet Steel jackets with durable powder-coated finish in Weil-McLain blue completely insulated designed for fast installation Gauge cocks, glass and guards 15 lb/sq-in ASME relief valve side outlet 10 years limited heat exchanger warranty 14 in draft hood outlet Compound pressure-vacuum gauge
