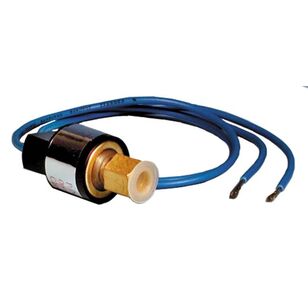

Supco® Classic Series SLP2550 Refrigeration Pressure Switch, 24/120/240 VAC, 2.9/5.8/17.4/34.8 A, 700 psi, 2800 psi Max
Supco® Classic Series SLP2550 Refrigeration Pressure Switch, 24/120/240 VAC, 2.9/5.8/17.4/34.8 A, 700 psi, 2800 psi Max
Supco® Refrigeration Pressure Switch, 24/120/240 VAC Voltage Rating, 2.9/5.8/17.4/34.8 A Amperage Rating, 700 psi, 2800 psi Maximum Pressure, 25 psi Open Pressure, 50 psi Close Pressure, SPST Switch Type, Open on Pressure Fall Switching Action, 100000 cycles Rated Life Cycle, 1/4 in Connection, Connection Type: Female Flared, 18 in Lead Length, -31 to 149 deg F Temperature Rating, Refrigeration Systems, Air Conditioning Systems and Heat Pump Systems Suitable For Use With
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$38.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandSupco®
Amperage Rating2.9/5.8/17.4/34.8
Close Pressure50
Connection Size1/4"
Connection TypeFemale Flared
IndustryHVAC
Lead Length18"
Maximum Pressure2800
Open Pressure25
Pressure Rating700
Rated Life Cycle100000
Suitable For Use WithRefrigeration Systems, Air Conditioning Systems and Heat Pump Systems
Switch TypeSPST
Switching ActionOpen on Pressure Fall
Temperature Rating-31 to 149
Voltage Rating24/120/240
Shipping Dimensions (L x W x H)5.25" x 3.25" x 1.5"
Additional Information
CE Certified|UL File No.E146162|UL Listed
Features & Benefits
- Low pressure switch opens on pressure fall 1/4 in SAE female flare fitting with valve core depressor 1/4 in SAE 45 deg female flare fitting with valve core depressor Small size and light weight for direct mounting Excellent set point repeatability/stability 5.8 FLA/34.8 LRA at 120 VAC, 2.9 FLA/17.4 LRA at 240 VAC rated current
Marketing Information
High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC and CFC refrigerants. The switches are available with automatic reset with both open low and open high configurations and manual reset with open high switching. These switches can also be used as operating controls in applications such as a low ambient condenser fan control.
Supco® Classic Series SLP2550 Refrigeration Pressure Switch, 24/120/240 VAC, 2.9/5.8/17.4/34.8 A, 700 psi, 2800 psi Max
BrandSupco®
MFG #SLP2550
Keller #1392278
