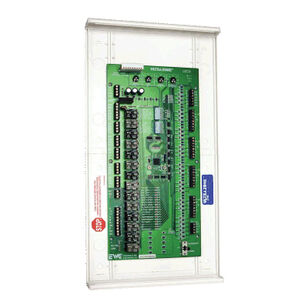

EWC® Ultra-Zone™ UZC-4 Control Panel, 24 VAC, 2.5 A Damper, 4 A Panel, 10 in W x 19-7/8 in H x 1.7 in D
EWC® Ultra-Zone™ UZC-4 Control Panel, 24 VAC, 2.5 A Damper, 4 A Panel, 10 in W x 19-7/8 in H x 1.7 in D
EWC® Ultra-Zone™ Control Panel, Series: UZC, 24 VAC, 2.5 A Damper, 4 A Panel, 22 VA VA Rating, 50/60 Hz, 4 Zones, Auto Changeover, 0 to 95% RH Non-Condensing Humidity, 4 Heat/2 Cool Stages, -20 to 160 deg F, 10 in W x 19-7/8 in H x 1.7 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,313.70 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandEWC®
Amperage Rating2.5 A Damper, 4 A Panel
ChangeoverAuto
Dimensions10 " W x 19-7/8 " H x 1.7 " D
Frequency Rating50/60
Humidity Rating0 to 95% RH Non-Condensing
IndustryHVAC
Number of Zones4
SeriesUZC
Stages4 Heat/2 Cool
Temperature Rating-20 to 160
VA Rating22
Voltage Rating24
Features & Benefits
- 18 ga solid copper wire Includes supply air sensor Staging via multi-stage thermostats, adjustable on-board timer or outdoor air sensor 50% rule to limit staging if less than half the total zones are demanding heating or cooling Fire alarm interlock feature, shuts down HVAC system and closes all connected damper Enhanced dehumidify feature and supply/return air temperature monitoring Fresh air damper terminal block with indoor blower interlock, activated by CO2 dry contact closure Adjustable timer for 2, 3 and 4-stage Fixed opposing mode timer Demand based ventilation feature LED display for complete system readout
Marketing Information
The UZC universal zone control system allows you to easily upgrade an inefficient single zone HVAC system, into an automated, multi-zone, energy saving, comfort producing, safety minded, HVAC system with superior design, Intuitive firmware, building code compliant support, Simple setup options and Easy to understand wiring, the UZC4 zoning system is the designer/contractors dream. Combined with patented EWC motorized dampers and practically any off-the-shelf conventional or heat pump style thermostats, EWC has set a new industry standard in large residential and commercial HVAC air zoning systems.
EWC® Ultra-Zone™ UZC-4 Control Panel, 24 VAC, 2.5 A Damper, 4 A Panel, 10 in W x 19-7/8 in H x 1.7 in D
BrandEWC®
MFG #UZC-4
Keller #139271
