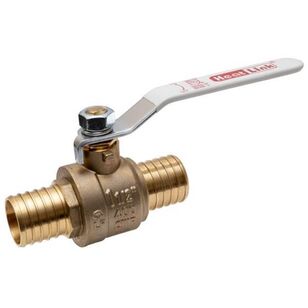

HeatLink® EX23305NL Ball Valve, 1/2 in, PEX, Brass, 100 psi
HeatLink® EX23305NL Ball Valve, 1/2 in, PEX, Brass, 100 psi
HeatLink® Ball Valve, 1/2 in Nominal, PEX Connection, Full Port, 100 psi, Water Media, 0.94 in Orifice, 2.58 in Inlet to Outlet Length, 1.68 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM F1960, Brass Body, PTFE Seat, Brass Stem, Steel Trim, PTFE Packing, Steel Handle, Stainless Steel Ball, NBR Softgoods, Lead-Free, 180 deg F, 2.15 in L x 4.92 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$15.32 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHeatLink®
Ball MaterialStainless Steel
Body MaterialBrass
Connection TypePEX
Dimensions2.15 " L x 4.92 " W
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.58
Lead-FreeYes
Material StandardASTM F1960
MediaWater
Nominal Size1/2
Operator TypeLever Handle
Orifice Size0.94
Packing MaterialPTFE
Port TypeFull
Pressure Rating100
Seat MaterialPTFE
Softgoods MaterialNBR
Stem MaterialBrass
Temperature Rating180
Top to Inlet Center1.68
Trim MaterialSteel
Additional Information
ANSI Z1157/IAPMO|cUPC Listed|IAPMO Certified|NSF/ANSI 14|NSF/ANSI 372|NSF/ANSI 61|UPC/NPCC Listed
Features & Benefits
- Full port for maximum flow Lead-free brass for potable water compliance Resistance to dezincification Corrosion resistance to chemical found in water and gas High-strength brass for long-term reliability F1960 Pex connections for use with the HeatLink® expansion system
