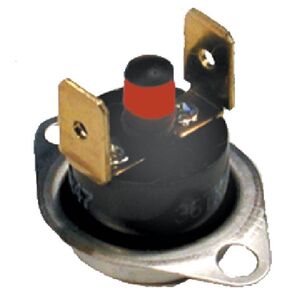

Supco® SRL250 Limit Thermostat, 3/1.5 A Inductive/15/10 A Resistive, SPST Switch
Supco® SRL250 Limit Thermostat, 3/1.5 A Inductive/15/10 A Resistive, SPST Switch
Supco® Limit Thermostat, SRL Series, 3/1.5 A Inductive/15/10 A Resistive Amperage Rating, SPST Switch Type, 250 deg F Temperature Rating, Connection Type: 1/4 in Vertical, 125 VA Pilot Duty Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17.71 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSupco®
Amperage Rating3/1.5 A Inductive/15/10 A Resistive
Connection Type1/4 " Vertical
Pilot Duty Rating125
SeriesSRL
Switch TypeSPST
Temperature Rating250
Shipping Dimensions (L x W x H)7" x 5" x .5"
Additional Information
CSA Certified, UL Listed
Features & Benefits
- Offered in a broad temperature range to cover most heating applications 36T electrical ratings Auto and manual reset Manual rollout safety in gas fired furnaces, unit heater and roof top units 3 A at 120 VAC/1.5 A at 240 VAC Full Load 15 A at 120 VAC, 10 A at 240 VAC resistive
Documents
Marketing Information
The SRL series of 1/2 in bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.
Supco® SRL250 Limit Thermostat, 3/1.5 A Inductive/15/10 A Resistive, SPST Switch
BrandSupco®
MFG #SRL250
Keller #1393850
