VIC V100461XE3 10IN SS BFVLV
VIC V100461XE3 10IN SS BFVLV

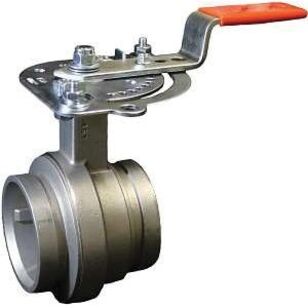

Victaulic® Vic-300 MasterSeal™ Butterfly Valve, 461 Series, 10 in Nominal, Grooved Connection, 300 psi, Water Media, Manual Actuator, 6.4 in Inlet to Outlet Length, 15-1/4 in Top to Inlet Center, Stainless Steel Body, EPDM Seat, Stainless Steel Stem, EPDM Seal, Stainless Steel Disc, EPDM Softgoods, Gear Operator, 5800 Cv Flow Coefficient (Cv), -30 to 230 deg F, Material Standard: ASTM A351-CF8M, 10.75 in OD x 21.62 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$21,427.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Actuator TypeManual
Body MaterialStainless Steel
Connection TypeGrooved
Dimensions10.75 " OD x 21.62 " H
Disc MaterialStainless Steel
Flow Coefficient (Cv)5800
Inlet to Outlet Length6.4
Material StandardASTM A351-CF8M
MediaWater
Nominal Size10
Operator TypeGear
Pressure Rating300
Seal MaterialEPDM
Seat MaterialEPDM
Series461 Series
Softgoods MaterialEPDM
Stem MaterialStainless Steel
Temperature Rating-30 to 230
Top to Inlet Center15-1/4
Additional Information
CE Marked|EN 1074-1/1074-2/12266-1|MSS SP-67|UKCA Certified|UPC Certified
Features & Benefits
- Features Original Groove System (OGS) grooved ends Designed for bi-directional, dead end services to full working pressure
VIC V100461XE3 10IN SS BFVLV
BrandVictaulic®
MFG #V100461XE3
Keller #1396196
My Part ##
Last Ordered#
$21,427.50 / ea
