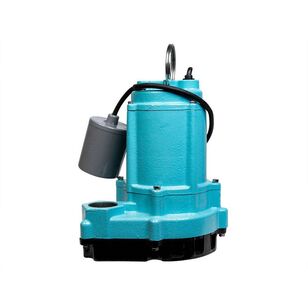

Little GIANT® 9ECH Series 9ECH-CIA-RF 509531 Effluent Pump, 115 V, 7 A, 60 Hz, 2/50-2/5 hp, 70 gpm, Iron
Little GIANT® 9ECH Series 9ECH-CIA-RF 509531 Effluent Pump, 115 V, 7 A, 60 Hz, 2/50-2/5 hp, 70 gpm, Iron
Little GIANT® Effluent Pump, 9ECH Series, Model: 9ECH-CIA-RF, 115 V, 7 A, 830 W Power, 60 Hz Frequency, HP Rating: 2/50-2/5 hp, 70 gpm Flow Rate, 1 ph, 1-1/2 in Discharge, 20 ft Cord Length, Maximum Feet of Head: 45 ft, 140 deg F, TPE Impeller, Dimensions: 10.4 in L x 8.4 in W x 10.9 in H, Iron, Additional Information: FNPT Discharge, Submersible Motor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,145.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLittle GIANT®
Additional InformationFNPT Discharge, Submersible Motor
Amperage Rating7
Cord Length20
Dimensions10.4 " L x 8.4 " W x 10.9 " H
Discharge Size1-1/2
Flow Rate70
Frequency Rating60
HP Rating2/50-2/5
Impeller MaterialTPE
IndustryPlumbing
MaterialIron
Maximum Feet of Head45
Model9ECH-CIA-RF
Phase1
Power Rating830
Series9ECH Series
Temperature Rating140
Voltage Rating115
Additional Information
CSA Certified
Features & Benefits
- 4/10 hp Permanent Split Capacitor (PSC) motor Designed for continuous duty Energy-saving low amp draw 1-1/2" FNPT (38 mm) discharge 3/4" solids handling Multiple switch options for automatic operation
Marketing Information
Built to handle higher-head flow in residential wastewater removal, dewatering, and water transfer applications, the 9ECH Series effluent pump is a homeowner's trusted companion. Constructed of heavy cast iron with an epoxy coated finish and stainless steel fasteners, the 9ECH Series effluent pump will provide years of reliability. When residential wastewater removal demands a high-pressure solution, the 9ECH Series effluent pump is the answer. This high head pump has a long life cycle and is built for heavy use with a cast iron body and housing coupled with multiple switch options for smooth automatic operation. The durable non-clog impeller allows for the passing of solids up to 3/4" diameter.
Little GIANT® 9ECH Series 9ECH-CIA-RF 509531 Effluent Pump, 115 V, 7 A, 60 Hz, 2/50-2/5 hp, 70 gpm, Iron
BrandLittle GIANT®
MFG #509531
Keller #1397578
