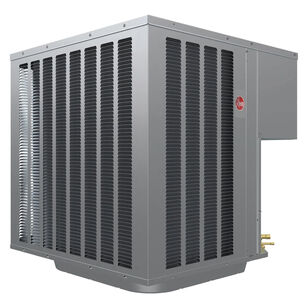

Rheem® Endeavor™ Eclipse Series WA13NY36AJ1NA Air Conditioner Condenser, 36000 Btu/hr, 17100 to 57000 Btu/hr Cooling
Rheem® Endeavor™ Eclipse Series WA13NY36AJ1NA Air Conditioner Condenser, 36000 Btu/hr, 17100 to 57000 Btu/hr Cooling
Rheem® Air Conditioner Condenser, Line Select™ Series, 36000 Btu/hr Nominal Capacity, 17100 to 57000 Btu/hr Cooling Capacity, 208-230 V Voltage Rating, 22 A Amperage Rating, 188 W Wattage, 1/6 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 2760 cfm Rating, 9 EER Rating, 13.4 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 71 dBA Sound Level, 35 A Fuse Rating, 13.3 sq-ft Face Area, 24 FPI Fins per Inch, Stainless Steel/Steel, 33.66 in L x 33.66 in W x 25.17 in H Dimensions, 3 ton Tonnage Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,461.13 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information3 t Tonnage
Amperage Rating22
CFM Rating2760
Compressor TypeScroll
Cooling Capacity17100 to 57000
Dimensions33.66 " L x 33.66 " W x 25.17 " H
EER Rating9
Face Area13.3
Fins per Inch24
Frequency Rating60
Fuse Rating35
HP Rating1/6
IndustryHVAC
Liquid Line Size3/8
MaterialStainless Steel/Steel
Nominal Capacity36000
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed825
SEER Rating13.4
SeriesLine Select Series
Sound Level71
Suction Line Size3/4
Voltage Rating208-230
Wattage188
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- Innovation You Can Count On: Patented industry-first features and advanced design make the WA13NY a smart choice Peace-of-Mind-Performance: Relax, you're covered by a dependable warranty - 5 Year Limited Parts Lower Environmental Impact: The 7mm condenser coil reduces refrigerant requirements up to 15%, this lowers the amount of greenhouse gases emitted while contributing to Rheem's sustainability goal of a 50% reduction in our greehhouse gas footprint, A win for all of us Durable Curb Appeal: Louvered panels and rugged corner posts provide excellent protection to internal components, while modern cabinet aesthetics including the powder coat paint system and one-piece drawn and painted base pan prevent corrosion - allowing your unit to put its best face forward for years to come Quiet Operation: Efficient home comfort shouldn't be noisy, that's why our air conditioners are designed with acoustics in mind Sound dampening features such as refrigerant tubing deign, fan blade approach, one-piece drawn base pan and innovative compressor and drive technologies ensure that as efficiency increases, sound levels remain low Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems This new requirement will result in a 78% lower GWP than previous-generation refrigerants - with only minimal changes to system installation For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
