HAYWARD®
HAY LA1600F 6 PVC LA VLV FLG FPM
HAYWARD®
HAY LA1600F 6 PVC LA VLV FLG FPM
MFG #LA1600F
Item #1397786
Mfr. Part #LA1600F
UPC #610377867757

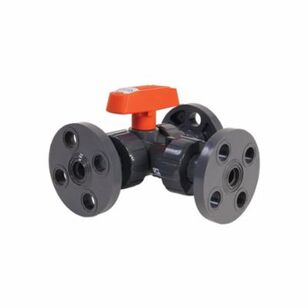

HAYWARD® Lateral True Union Ball Valve, 3-Way, Series: LA Series, 6 in Nominal, Flanged, 150 psi, 70 deg F, 20-1/4 in Inlet to Outlet Length, 6.85 in Top to Inlet Center, PVC Body, PTFE Seat Trim, FPM
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Body MaterialPVC
End StyleFlanged
IndustryLeisure
Inlet to Outlet Length20-1/4"
Nominal Size6"
Pressure Rating150
SeriesLA Series
Softgoods MaterialFPM
Temperature Rating70
Top to Inlet Center6.85"
Trim MaterialPTFE Seat
Type3-Way
Additional Information
ASTM D1784 Class 12454
Features & Benefits
- Simplifies lateral connections Replaces valve/tee connection combinations Quick, easy to install Double O-Ring stem seal Replacement for zero dead-leg valves 150 psi at 70 deg F non-shock Fpm O-ring
Documents
Marketing Information
LA Series lateral 3-way ball valves are available in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. Up to 2 in sizes have socket and threaded end connections. All valves are assembled with silicone free lubricant.
