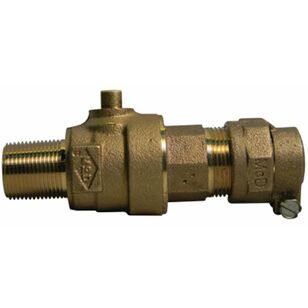

Mc.Donald® 74704B-22 5133-164 Ball Corporation Valve, 1 x 1 in Nominal, MNPT x CTS Compression, 300 psi, Brass Body
Mc.Donald® 74704B-22 5133-164 Ball Corporation Valve, 1 x 1 in Nominal, MNPT x CTS Compression, 300 psi, Brass Body
Mc.Donald® Ball Corporation Valve, Model: 74704B-22, 1 x 1 in Nominal, MNPT x CTS Compression Connection, 300 psi, EPDM Softgoods, Brass Body, 1-1/2 in Top to Inlet Center, Additional Information: 1 in Valve Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$158.32 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
Additional Information1 " Valve Size
Body MaterialBrass
Connection TypeMNPT x CTS Compression
Model74704B-22
Nominal Size1 x 1
Pressure Rating300
Softgoods MaterialEPDM
Top to Inlet Center1-1/2
Additional Information
ANSI/AWWA C800|ASTM B62/B584|NSF/ANSI 61/372|UNS C89833
Marketing Information
A.Y. McDonald Ball Style Corporation Stops come standard with a 360 degree operating head and are designed for low turning torques and operating pressures up to 300 PSI. The brass ball is coated with PTFE and supported by two blow-out proof EPDM seals. The end piece that holds the ball in the body is sealed with an EPDM O-ring and thread locker. A.Y. McDonald ball valves have no metal-to-metal contact between the ball and the body to cause higher turning torques and increased wear on the ball. The leak proof feature at 300 PSI rating makes these valves a better choice than a plug valve when test or operating pressures exceed 80 PSI.
Mc.Donald® 74704B-22 5133-164 Ball Corporation Valve, 1 x 1 in Nominal, MNPT x CTS Compression, 300 psi, Brass Body
BrandMc.Donald®
MFG #5133-164
Keller #1398443
