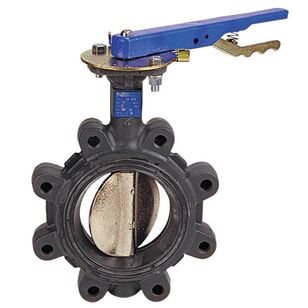

NIBCO LDL1100-10IN DI BFLY VALVE
NIBCO LDL1100-10IN DI BFLY VALVE
NIBCO®, Nominal Size: 10 in, Connection Type: Lug, Pressure Rating: 100 psi, Body Material: Ductile Iron, Seat Material: Buna-N Nitrile Rubber, Seal Material: Buna-N Nitrile Rubber, Operator Type: Quarter-Turn Bare Stem/Bare Shaft
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,719.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialDuctile Iron
Connection TypeLug
Nominal Size10
Operator TypeQuarter-Turn Bare Stem/Bare Shaft
Pressure Rating100
Seal MaterialBuna-N Nitrile Rubber
Seat MaterialBuna-N Nitrile Rubber
Features & Benefits
- Valve pressure rating 100 psi Maximum 180 degrees F service Lug style Buna-N molded-in seat liner Nickel electroplated ductile iron disc Stainless steel stem with copper bushings Geometric drive Extended neck Operating mechanism: Bare stem for use with pneumatic or electric actuators Not recommended for steam service Designed to meet MSS SP-67 MSS SP-25 (markings) U.S. Coast Guard Category A
Marketing Information
The NIBCO pecent ductile iron butterfly valve features a unique molded-in Buna-N seat liner with ductile iron, electro nickel plated disc, recommended for most water applications. The internal stem/disc geometric drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
NIBCO LDL1100-10IN DI BFLY VALVE
BrandNIBCO®
MFG #NLG24PM
Keller #1399516
My Part ##
Last Ordered#
$2,719.00 / ea
