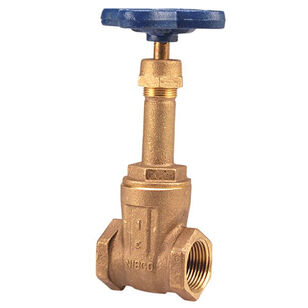

NIBCO T-111-3/4 BRZ R/S GATE VLV NOT FOR POTABLE USE
NIBCO T-111-3/4 BRZ R/S GATE VLV NOT FOR POTABLE USE
NIBCO® Gate Valve, T-111 Series, 3/4 in Nominal, FNPT Connection, 125 psi, Pressure Class: Class 125, Air, Gas, Water Media, 2.06 in Inlet to Outlet Length, 5.81 in Top to Inlet Center, Bronze Body, Bronze Seat, Silicon Bronze Alloy Stem, Silicon Bronze Trim, Aramid Fiber/Graphite Packing, Malleable Iron Handle, Standard Handwheel Operator, 353 deg F, Material Standard: ASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B584 C84400, ASTM B16, 6.5 in H x 2.5 in W 6.5 in H x 2.5 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$223.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services
Body MaterialBronze
Connection TypeFNPT
Dimensions6.5 " H x 2.5 " W
Domestic/ImportDomestic
Handle MaterialMalleable Iron
Inlet to Outlet Length2.06
Material StandardASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B584 C84400, ASTM B16
MediaAir, Gas, Water
Nominal Size3/4
Operator TypeStandard Handwheel
Packing MaterialAramid Fibre/Graphite
Pressure ClassClass 125
Pressure Rating125
Seat MaterialBronze
SeriesT-111 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating353
Top to Inlet Center5.81
Trim MaterialSilicon Bronze
Warranty5 Year Limited
Additional Information
MSS SP-80 Certified
Features & Benefits
- Rising stem Solid wedge Screw-in bonnet Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO T-111-3/4 BRZ R/S GATE VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL05008
Keller #139980
My Part ##
Last Ordered#
$223.10 / ea
