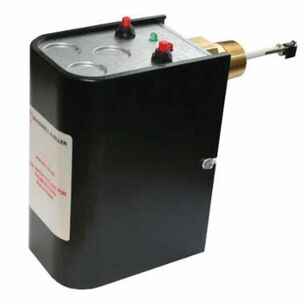

McDonnell & Miller PSE-800-M Series PSE-801-M-120 153601 Low Water Cut-Off With Standard Probe
McDonnell & Miller PSE-800-M Series PSE-801-M-120 153601 Low Water Cut-Off With Standard Probe
McDonnell & Miller Low Water Cut-Off With Standard Probe, PSE-800-M Series, Model: PSE-801-M-120, 7.5 A, 120 VAC, 50/60 Hz, Manual Reset, 15 psi for Steam, 160 psi for Water, NEMA 1 Enclosure, 125 VA Pilot Duty, 7000 Ohm Sensitivity, 85 % Humidity Rating, 32 to 120 deg F, 5-13/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMcDonnell & Miller
Amperage Rating7.5
Dimensions5-13/16 " H
Enclosure TypeNEMA 1
Frequency Rating50/60
Humidity Rating85
ModelPSE-801-M-120
Pilot Duty Rating125
Pressure Rating15 psi for Steam, 160 psi for Water
Reset TypeManual
Sensitivity7000
SeriesPSE-800-M Series
Temperature Rating32 to 120
Voltage Rating120
Additional Information
ASME CSD-1 Specified|cULus Listed
Features & Benefits
- Lockout delay Power interruption Green LED indicates power on Red LED indicating low water condition
Documents
Marketing Information
The series PSE-800-M manual reset lwco is a new addition to the McDonnell & Miller probe type low water cut-off group of products. These controls are used as the secondary lwco on steam boilers and can be used as the primary lwco on hot water heating boilers. With a self-cleaning probe, available only on McDonnell & Miller probe type controls, which reduces probe maintenance to once every five years instead of annually. Manual reset models meet requirements of ASME Standard CSD-1.
McDonnell & Miller PSE-800-M Series PSE-801-M-120 153601 Low Water Cut-Off With Standard Probe
BrandMcDonnell & Miller
MFG #153601
Keller #1400396
My Part ##
Last Ordered#
Call for Price / ea
