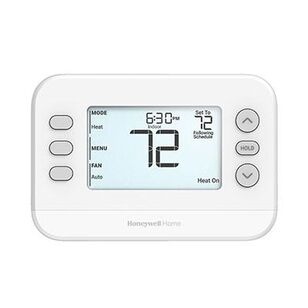

Honeywell FocusPRO® P200 Series TH2320U4006/U Programmable Thermostat, 20 to 30 V, 0.02 to 1 A, 2/3
Honeywell FocusPRO® P200 Series TH2320U4006/U Programmable Thermostat, 20 to 30 V, 0.02 to 1 A, 2/3
Honeywell Programmable Thermostat, Series: P200 Series, 20 to 30 V, 0.02 to 1 A, 60 Hz, Flexible Programmability, Auto/Manual Changeover, Battery/Hardwired, 2/3 Stages, HEAT-OFF-COOL-AUTO-EM.HEAT (System) Switch Position, Relay Switch, Digital, +/-1 deg F Differential, 50 to 99 deg F Cooling, 32 to 90 deg F Heating Temperature Settings, 32 to 120 deg F, 5 to 90 % Humidity Rating, 1 deg F Accuracy, 0.02 to 1 A Cool Current, RC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, L, E, S Terminal Designation, UWP, 0.02 to 0.05 A Fan Current, 0.02 to 1 A Heat Current, White, 3.438 in H x 5.125 in W x 1.188 in D, Additional Information: 4.84 sq-ft Display Area
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$156.37 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Accuracy1
Additional Information4.84 sq-' Display Area
Amperage Rating0.02 to 1
ChangeoverAuto/Manual
ColorWhite
Color/FinishWhite
Cool Current0.02 to 1
Differential Temperature+/-1
Dimensions3.438 " H x 5.125 " W x 1.188 " D
Display TypeDigital
Electrical ConnectionUWP
Fan Current0.02 to 0.05
Frequency Rating60
Heat Current0.02 to 1
Humidity Rating5 to 90
Power SourceBattery/Hardwired
ProgrammabilityFlexible
SeriesP200 Series
Stages2/3
Switch PositionHEAT-OFF-COOL-AUTO-EM.HEAT (System)
Switch TypeRelay
Temperature Rating32 to 120
Temperature Settings50 to 99 deg F Cooling, 32 to 90 deg F Heating
Terminal DesignationRC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, L, E, S
Voltage Rating20 to 30
Features & Benefits
- Supports single-stage 1H/1C for TH2110U4004/U or up to 3H/2C heat pump and 2H/2C conventional for TH2320U4006/U UWP® wall plate supports speedy installation and easy upgrade Private label with customized snap-on accent piece Flexible scheduling in 5-1-1 day, 5-2 day, 7 day, or 1 week increments, or turn scheduling off Large display with clear font Optional always-on backlight when hardwired Customizable display settings Intuitive interface for easy navigation Choose to receive filter reminders Heat low limit defaults to 40degF (4degC) but configurable to 32degF (0degC) for garage applications Dual fuel compatible Wired outdoor sensor compatibile Fan lockout after cool call option 5-year warranty
Documents
Marketing Information
The Honeywell Home FocusPRO® P200 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label and competitive price.
Honeywell FocusPRO® P200 Series TH2320U4006/U Programmable Thermostat, 20 to 30 V, 0.02 to 1 A, 2/3
BrandHoneywell
MFG #TH2320U4006/U
Keller #1402497
My Part ##
Last Ordered#
$156.37 / ea
