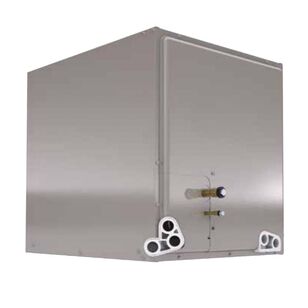

Name: Rheem® Endeavor® RCFY Series RCFY4821STAAMC Line Cased Furnace Coil, 48000 Btu/hr BTU, NPT, Aluminum
Brand: Rheem®
SKU: 1402988
Price: 3350.64 USD
Availability: InStock

Attributes

BrandRheem®

Additional InformationStandard Efficiency, 7.6 sq-' Face Area, 13 FPI, 3-Row, R-454B Refrigerant, Multi-Poise Orientation

BTU Rating48000

Coil SeriesA-Coil

Connection TypeNPT

Dimensions28 " H x 21 " W x 21-11/16 " D

Flow Rate1200 cfm, 1600 cfm

Fuel TypeGas, Oil

MaterialAluminium

Nominal Capacity48000 Btu/hr

SeriesRCFY Series

Suitable For Use WithGas and Oil Furnaces

Warranty10 Year Limited Conditional Parts

Additional Information

Standard Efficiency, 7.6 sq-ft Face Area, 13 FPI, 3-Row, R-454B Refrigerant, Multi-Poise Orientation

Features & Benefits

Rheem® Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW] Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4" [19.1 mm] N.P.T. Condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet of TXV or EXV and equalizer connections (TXV only) Approved for system application with variety of Rheem outdoor units Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material Compatible with Germicidal Light System (UV resistant) Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-Coil design maximizes performance and minimizes height required at installation Coils are AHRI certified for system application with a variety of Rheem outdoor units Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%1 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™2: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected

Documents

Catalog

Marketing Information

Rheem® Endeavor® Line Cased Furnace Coil, RCFY Series, NPT Connection, 1200 cfm, 1600 cfm Flow Rate, 48000 Btu/hr, Gas, Oil Fuel, For Use With: Gas and Oil Furnaces, Aluminum, 28 in H x 21 in W x 21-11/16 in D, Additional Information: Standard Efficiency, 7.6 sq-ft Face Area, 13 FPI, 3-Row, R-454B Refrigerant, Multi-Poise Orientation
