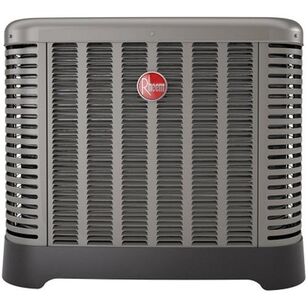

Rheem® Ovation Series RP15AY36AJ2NA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208/230 V, 20 A, 1/5 hp, 1 ph Phase
Rheem® Ovation Series RP15AY36AJ2NA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208/230 V, 20 A, 1/5 hp, 1 ph Phase
Rheem® Heat Pump, Line Classic Plus® Series, RP15AY Model, 208/230 V Voltage Rating, 20 A Amperage Rating, 246 W Power Rating, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 850 rpm Rotational Speed, 36000 Btu/hr BTU Rating, 4206 cfm Rating, 11.7 EER Rating, 15.2 SEER Rating, 8.1 HSPF Rating, Scroll Compressor Type, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 30 A Fuse Rating, 3 ton Tonnage, 74 dBA Sound Level, 2 Number of Stages, 39 in H x 35-3/4 in W x 35-3/4 in D Dimensions, Non-Communication Control, 15 A Rated Load, 90 A Locked Rotor, 1.2 A Full Load Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11,337.71 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationNon-Communication Control, 15 A Rated Load, 90 A Locked Rotor, 1.2 A Full Load
Amperage Rating20
BTU Rating36000
CFM Rating4206
Compressor TypeScroll
Dimensions39 " H x 35-3/4 " W x 35-3/4 " D
EER Rating11.7
Frequency Rating60
Fuse Rating30
HP Rating1/5
HSPF Rating8.1
IndustryHVAC
Liquid Line Size3/8
ModelRP15AY
Number of Stages2
Phase1
Power Rating246
Refrigerant TypeR-454B
Rotational Speed850
SEER Rating15.2
SeriesLine Classic Plus Series
Sound Level74
Suction Line Size3/4
Tonnage3
Voltage Rating208/230
Warranty10 Year Limited
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- Peace-Of-Mind Performance: Relax, youre covered by one of the best warranties in the industry-10 Year Conditional Parts. Less Environmental Impact: The 7mm condenser coil reduces refrigerant requirements up to15%. This lowers the amount of greenhouse gases emitted while contributing to Rheems sustainability goal of a 50% reduction in our greenhouse gas footprint by 2025. A win for all of us. Reduced Emissions: Households generate 72% of greenhouse gas emissions, so switching to a heat pump can make a big difference for the environment-today. Durable Curb Appeal: Curved louvered panels and rugged corner posts provide excellent protection to internal components, while the overall modern cabinet aesthetics including the corrosion-resistant composite base pan and powder coat paint system allow your unit to put its best face forward for years to come. Quiet Operation: Efficient home comfort shouldnt be noisy. Thats why our heat pumps are designed with acoustics in mind. Sound-dampening features such as refrigerant tubing design, fan blade approach, composite base pan and innovative compressor and drive technologies ensure that as efficiency goes up, sound levels stay low. Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
Marketing Information
Rheem® Heat Pump, Series: Line Classic Plus® Series, Model: RP15AY, 208/230 V, 20 A, 246 W, 1/5 hp Rating, 60 Hz, 1 ph, 850 rpm Rotational Speed, 36000 Btu/hr, 4206 cfm CFM Rating, 11.7 EER, 15.2 SEER, HSPF: 8.1, Scroll Compressor, R-454B, 3/8 in Liquid Line, 3/4 in Suction Line, 30 A Fuse, 3 ton Tonnage, 74 dBA, 2 Stage, 39 in H x 35-3/4 in W x 35-3/4 in D, Additional Information: Non-Communication Control, 15 A Rated Load, 90 A Locked Rotor, 1.2 A Full Load
Rheem® Ovation Series RP15AY36AJ2NA Heat Pump, 3 ton, 36000 Btu/hr BTU, 208/230 V, 20 A, 1/5 hp, 1 ph Phase
BrandRheem®
MFG #RP15AY36AJ2NA
Keller #1403085
My Part ##
Last Ordered#
$11,337.71 / ea
