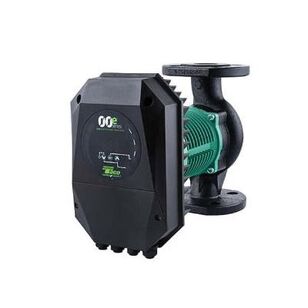

Taco Comfort Solutions® 00e VR Series VR15H-SF ECM High Efficiency Circulator, 122 gpm, 680 W, 200 to 240 V, 6 A
Taco Comfort Solutions® 00e VR Series VR15H-SF ECM High Efficiency Circulator, 122 gpm, 680 W, 200 to 240 V, 6 A
Taco Comfort Solutions® ECM High Efficiency Circulator, Series: 00e VR Series, 122 gpm Flow Rate, 52 ft Maximum Head, 680 W, 200 to 240 V, 6 A, 175 psi Maximum Pressure, 0.9 hp, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 14 to 230 deg F, Sleeve Bearing, Stainless Steel, 9.8 in Dia x 15.4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,660.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating6
Bearing TypeSleeve
Connection Size1-1/2
Connection TypeFlanged
Dimensions9.8 " Dia x 15.4 " H
Flow Rate122
HP Rating0.9
IndustryHydronics
MaterialStainless Steel
Maximum Head52
Maximum Pressure175
Phase1
Power Rating680
Series00e VR Series
Temperature Rating14 to 230
Voltage Rating200 to 240
Additional Information
cCSA 22.2 #108 #100 #107.1EMC (89/366EEC): EN 61000|cULus Listed|EN 60335-2-51/ISO 12100|FCC Approved|LDV (73/23/EC): EN 60335-1|NSF/ANSI 61/372 Commercial Hot|UL778 1004-1 508C
Features & Benefits
- High efficiency ECM technology uses up to 85% less electricity Intuitive user interface with real time feedback Constant speed, constant pressure, proportional pressure and activeADAPT®, self-adjusting proportional pressure BMS communication - Modbus, BACnet, 0 to 10 VDC, PWM Parallel pump control, cascading, auto-rotate and main/standby Standard #125 ANSI flanges (companion flange kit sold separately) Stainless steel models NSF 61 and 372 commercial hot certified
Documents
Marketing Information
The Taco 00e® VR Series are ECM high efficiency, wet rotor, self-sensing commercial circulators ideal for HVAC and potable water applications. The wide range of models with low, medium or high head options provide differential head pressures up to 65 ft and flow ranges up to 320 gpm. BMS communication with Modbus, BACnet, 0 to 10 VDC and PWM come standard while high efficiency ECM technology reduces power consumption up to 85%. The stainless steel models are NSF 61 and 372 domestic and commercial hot-rated.
Taco Comfort Solutions® 00e VR Series VR15H-SF ECM High Efficiency Circulator, 122 gpm, 680 W, 200 to 240 V, 6 A
BrandTaco Comfort Solutions®
MFG #VR15H-SF
Keller #1403206
My Part ##
Last Ordered#
$9,660.00 / ea
