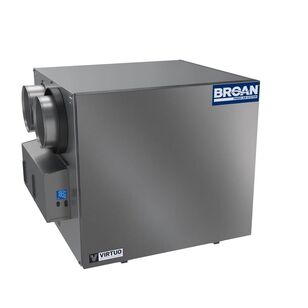

AI Series 230 CFM Heat Recovery Ventilator (HRV) Side Port
AI Series 230 CFM Heat Recovery Ventilator (HRV) Side Port
AI Series 230 CFM Heat Recovery Ventilator (HRV) Side Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,020.10 / ea
In Stock
- Attributes
- Features & Benefits
Attributes
BrandBROAN NuTone
Apparent Sensible Efficiency At 32f Percent82 Percent (65 CFM)
Certification File NoE147773
CollectionAi Series
Constant AirflowYes
Contain Electronic EquipmentYes
Core Warranty10 Years
Csa ListedYes
Cul ListedYes
Culus ListedYes
Defrost TypeRecirculating
Filter TypeFoam
Filtration LevelMERV 8
FinishGalvanized Steel
Height19.5"
Hvi CertifiedYes
IndustryHVAC
Installation TypeUniversal Brackets or Chain
Ista RatingISTA - 3A
Length21"
MaterialGalvanized
Min Max Continuous Airflow Cfm At 0 2 W G65-231
Min Max Continuous Airflow Cfm At 0 4 W G65-225
Motor Engineered For Cont OperationsYes
Motor TypePMSM
Optional Filtration LevelsMERV 13
OversizedTrue
Ports LocationSide
Ports Size6'' Round
Power Consumption Watts At Max Rated Sre25W (66 CFM)
Product LinevänEE
Prop 65 Warning LabelYes
Sensible Recovery Efficiency At 13f Percent67 Percent (81 CFM)
Sensible Recovery Efficiency At 32f Percent78 Percent (66 CFM)
System TypeHRV
Ul ListedYes
Unit Electrical Watts210
Wall Control CompatibiltyAdvanced Touchscreen (VTTOUCHW)| Automatic (VAUTOW)| Dehumidistat (VTDEHUMW)| Speed Selector (VTSPEEDW)| 20-40-60 Deluxe (VBATHBTW)| 20-40-60 (VBATHW)
Weight47 lbs.
Width27.13"
Shipping Dimensions (L x W x H)2.42" x 2.05" x 2.23"
Features & Benefits
- Quick setup with VIRTUO technology, which does the airflow verification and balancing for you, eliminating a complex part of the installation process. Set it and forget it
- Consistent results with airflow verification, auto-balancing, and self-adjustment technology maintains the quality initial configuration in all dwelling types
- Installing a Heat Recovery Ventilator (HRV) improves indoor air quality of your home by providing a supply of tempered, filtered outdoor fesh air while exhausting the stale polluted air from your home, leaving the air healthier and more comfortable
- Equipped with powerful and energy efficient ECM PMSM motors delivering up to 231 CFM. Our proprietary design is the most reliable on the market
- Superior HRV core performance and durability reaching up to 78 Percent SRE 32 degree F at 66 CFM and Certified at 67 Percent SRE -13 degree F at 81 CFM
- Delivers superior air quality with an included MERV 8 filter or the optional MERV 13 No.V24300
- Integrated LCD screen to easily set the desired CFM. Display real time airflows, power consumption and act as diagnostic error tool
- Universal platform offers both top and side port configurations to accommodate different installation locations (180 CFM models only available in top ports)
- Suspended installation (chains included) or Wall-mount installation with 2 or 4 brackets (universal brackets included)
- Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
- Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
AI Series 230 CFM Heat Recovery Ventilator (HRV) Side Port
BrandBROAN NuTone
MFG #B230H75RS
Keller #1403218
