ANSI Z21.20 Certified, UL 372 Listed and CSA Certified, C22.2 Number 199

• Three LED provide basic diagnostic information Single or multiple trials for ignition before lockout Designed for easy mounting on a 4 x 4 junction Selectable ignition timing 4 - 15 sec Selectable pre-purge timing 1 - 240 sec Selectable relight or recycle operation on loss of flame The micro-processor is checked for proper operation before each cycle Checks combustion air proving switch contacts on 7590C and D models Gas valve relay check on each cycle Communication port links new alarm module and future products 0.8 sec flame failure response time Input - 120 VAC igniter, motor, output - 2 A main valve rating (resistive), 7.4 A motor relay rating, 1 A igniter relay rating 5 - 95% RH non-condensing moisture

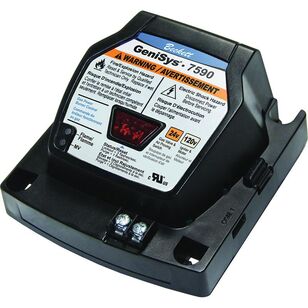

The Beckett GeniSys gas power burner control is a 24 VAC primary safety control designed for use on gas power burners in residential and light commercial gas heating applications. Applications may include boilers, furnaces, water heaters, space heating and commercial cooking equipment. The GeniSys gas power burner control provides supervision of a 120 V burner motor and a separate 120 VAC igniter as well as a 24 VAC gas valve. The 7590C and D models provide connections for a combustion air proving switch and monitor the switch position to check for sticking or welded switch contacts.
