• BTL Certified which ensures full interoperability with BACnet devices Supports BACnet MSTP physical layer Direct access to indoor unit wired controller communication bus Can connect to F3/F4 with up to one (1) Samsung wired controller Simultaneous control of the AC unit by Samsung wireless and wired controllers (depending on indoor unit) and BACnet Samsung wireless and wired controllers Can be disabled to only allow BACnet control Total control and monitoring of the AC unit from BACnet, including AC unit's internal variables, running hours counter (for filter maintenance) and indoor unit error codes Bidirectional communication of air conditioning unit properties and functionalities Quick and easy installation, Configuration using DIP switches, then connect to indoor unit and BACnet network External power not required Mountable on DIN rail, wall, or inside some indoor unit models LED indicators provide easy to check communication of BACnet MS/TP port

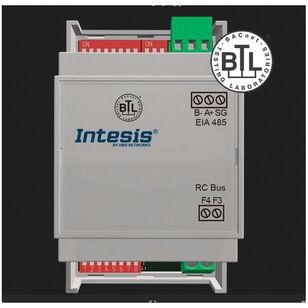

The Samsung interface has been designed to allow bidirectional control and monitoring of Samsung NASA systems from a BMS, SCADA, PLC or any other device working as a BACnet MS/TP Master.
