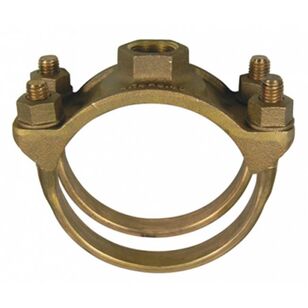

Mc.Donald® 3825 4148-002 Double Bale Strap Service Saddle, Fits Pipe Size: 4 x 1 in, 4.74 to 5.4 in Outlet Pipe
Mc.Donald® 3825 4148-002 Double Bale Strap Service Saddle, Fits Pipe Size: 4 x 1 in, 4.74 to 5.4 in Outlet Pipe
Mc.Donald® Double Bale Strap Service Saddle, Model: 3825, Fits Pipe Size: 4 x 1 in, Iron/Cement-Asbestos/Cast Iron x AWWA/CC Connection, 4.74 to 5.4 in Outlet Pipe, 200 psig, Silicon Bronze Clamp, EPDM Gasket, Brass Saddle, 3.19 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$218.65 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
Dimensions3.19 " W
Fits Pipe Size4 x 1
Gasket MaterialEPDM
Model3825
Outlet Pipe Size4.74 to 5.4"
Pressure Rating200
Saddle MaterialBrass
Clamp MaterialSilicon Bronze
Connection TypeIron/Cement-Asbestos/Cast Iron x AWWA/CC
Additional Information
ANSI/AWWA C800|ASTM B62/B584|NSF/ANSI 61|UNS C83600-85-5-5-5
Features & Benefits
- Manufactured in compliance with ANSI/AWWA C800 (latest revision) Brass components conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision) Certified to NSF/ANSI 61 Silicon Bronze strap(s) and cast brass nuts with enlarged washer bearing surface EPDM o-ring Pipe and tap size, and thread type identified on saddle Outlet boss with large wrench flats
Documents
Marketing Information
A.Y. McDonald Mfg. Co. Model 3825 A & B / 3826 A & B Double Bronze Bale Brass Service Saddles are designed for use on service line connections to ductile iron, asbestos-cement or cast iron O.D. pipe water mains. The pressure capabilities equal, but do not exceed, the working pressure rating of the pipe up to 200 PSIG.
