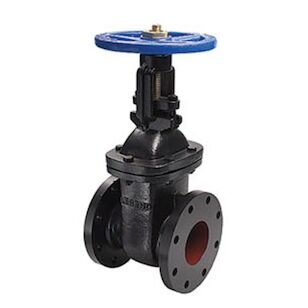

Legend Valve T-303 116-122 Gate Valve, 2-1/2 in Nominal, Flanged, Hand Wheel Operator, Cast Iron Body
Legend Valve T-303 116-122 Gate Valve, 2-1/2 in Nominal, Flanged, Hand Wheel Operator, Cast Iron Body
Legend Valve Gate Valve, Model: T-303, Flanged Connection, 2-1/2 in Nominal, 200 lb/sq-in CWP Non-Shock, 125 lb/sq-in WSP at 450 deg F Saturated Steam, Pressure Class: 125 lb, 150 lb, Cast Iron Body, Bronze Seat, Forged Brass Stem, NBR (Buna-N) Rubber Gasket Seal, Flexible Graphite Stem Packing, Ductile Iron Handle, Hand Wheel Operator, Material Standard: ASTM A-126 Class B, ASTM B-16 UNS C36000, ASTM A-536, 7.48 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$905.11Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialCast Iron
Connection TypeFlanged
Dimensions7.48 " L
Handle MaterialDuctile Iron
Material StandardASTM A-126 Class B, ASTM B-16 UNS C36000, ASTM A-536
ModelT-303
Nominal Size2-1/2"
Operator TypeHand Wheel
Packing MaterialFlexible Graphite Stem
Pressure Class125 lb, 150 lb
Pressure Rating200 lb/sq-" CWP Non-Shock, 125 lb/sq-" WSP at 450 deg F Saturated Steam
Seal MaterialNBR (Buna-N) Rubber Gasket
Seat MaterialBronze
Stem MaterialForged Brass
Additional Information
ANSI/ASME B16.1, ISO Certified, MSS SP-70
Features & Benefits
- Outside-screw-and-yoke stem design gives visual reference to disc wedge position More durable than non-rising stem designs, as the stem threads are external and aren't exposed to the media flow IBBM design: iron-body-bronze-mount, with bronze seat and wedge sealing rings Solid wedge assures a positive drip-tight closure Durable cast iron construction resists pipeline stresses and distortion All external surfaces are primed and dual-coat painted for corrosion-resistance Full-flow waterways minimize pressure drop Cast iron bolted yoke and bonnet/yoke, carbon steel gland follower "T" bolt, bonnet bolt, nut and (2) Lock nuts, ductile iron disc-wedge and gland follower, aluminum bronze wedge face ring and seat ring, NBR (Buna-N) Rubber gasket 5-1/2 in Dia bolt circle 5/8-11 bolt size 7 in Dia flange Four-bolt holes
