ADA Compliant|ASME A112.18.1|CSA C22.2 File No. 120|IAPMO Listed|IGC 115/226|Michigan Filter First Listed|NSF 42/53/372/401|NSF/CAN 61|OBC Listed|QBC Listed|TAS Listed|UL 399

• Touch-free sensor operated bottle filler with 20 second max run time, Up to 1.2 gpm fill rate for quick fill with laminar flow Versatile mounting style allows for left-high or right-high installation, ADA compliant when installed properly Backlit LED light that illuminates bottle filling area when sensor is activated, Soft ambient white light to indicate filter status Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking Rough-in matches other manufacturers' recommended rough-in locations for easy replacement Antimicrobial bubbler, push bar, and other components Drop-down door assembly provides easy access to filter Patent pending push bar activates at any touch point and provides easy access for cartridge replacement Optional cane apron available for bi-level units to assist with ADA compliance (part 33830030, 33830031). Sold separately

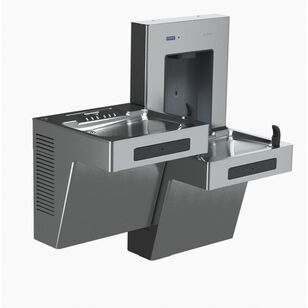

Sloan's DropSpot™ On-wall Bottle Filler with Bi-level Cooler Filtered Refrigerated Stainless. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Unit shall be activated from an antimicrobial front pushbar using less than 5 pounds of force. Bubbler shall deliver a 0.3 gpm flow. Basin and cabinet shall be constructed from 304 stainless steel with satin finish. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. White light indicates the water filter status. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be stainless steel. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Push bar shall be activated by any touch point on the bar and shall be opened by Sloan access key. Filter drop-down assembly shall be opened by Sloan access key. Filter used in the unit shall have capacity of 3000 gallons at a minimum, and shall reduce PFAS (PFOA and PFOS), lead, microplastic, cyst, chlorine and class 1 particles.
