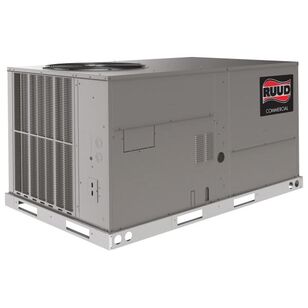

RUUD® Renaissance™ Classic® Series RACCYB060ACT000AAAA0 Packaged Air Conditioner, 5 ton Nominal, 208-230 V, 2000 cfm
RUUD® Renaissance™ Classic® Series RACCYB060ACT000AAAA0 Packaged Air Conditioner, 5 ton Nominal, 208-230 V, 2000 cfm
RUUD® Renaissance™ Packaged Air Conditioner, Series: Classic® Series, 5 ton Nominal Capacity, 60000 Btu/hr Cooling BTU Rating, 208-230 V, 5 kW, 1 hp Indoor, 1/2 hp Outdoor HP Rating, 1050 rpm Indoor, 1075 rpm Outdoor Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, Horizontal Sideflow, Vertical Downflow Configuration, 2000 cfm Rating, 10.6 EER, 13.4 SEER, 1 Speed, 1 Stage, R-454B, 86 dB, Direct Drive, 1-Row 20 FPI 8.41 sq-ft Face Area Indoor, 1-Row 23 FPI 16.46 sq-ft Face Area Outdoor Coil Rating, (4) 2 x 16 x 16 in Filter, CoreCommand™ Control, Steel, Galvanized, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D, Additional Information: Standard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$19,923.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationStandard Static Constant Torque Drive, Small Commercial Cabinet, Standard Efficiency
CFM Rating2000
Coil Rating1-Row 20 FPI 8.41 sq-' Face Area Indoor, 1-Row 23 FPI 16.46 sq-' Face Area Outdoor
Compressor TypeScroll
ConfigurationHorizontal Sideflow, Vertical Downflow
Control TypeCoreCommand
Cooling BTU Rating60000
Dimensions41-3/8 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect
EER Rating10.6
Filter Size(4) 2 x 16 x 16 "
FinishGalvanized
Frequency Rating60
HP Rating1 hp Indoor, 1/2 hp Outdoor
IndustryHVAC
MaterialSteel
Nominal Capacity5
Number of Speeds1
Number of Stages1
Phase3
Refrigerant TypeR-454B
Rotational Speed1050 rpm Indoor, 1075 rpm Outdoor
SEER Rating13.4
SeriesClassic Series
Sound Level86
Voltage Rating208-230
Wattage5
Additional Information
AHRI Certified|ASHRAE 90.1|cULus Listed
Features & Benefits
- Optional hot gas reheat (HumidiDry®) available on all models, including single phase power units for tighter humidity control and better comfort Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet® Available power options: 208-230V / 1 phase / 60 Hz, 208-230V / 3 phase / 60 Hz, 460V / 3 phase / 60 Hz, 575V / 3 phase / 60 Hz Limited Warranty (Commercial Applications): Parts - 1 Year, Compressor - 5 Years, Additional extended warranty packages available through ProtectionPlus® All units are factory run tested and shipped with R-454B refrigerant charge
Marketing Information
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
RUUD® Renaissance™ Classic® Series RACCYB060ACT000AAAA0 Packaged Air Conditioner, 5 ton Nominal, 208-230 V, 2000 cfm
BrandRheem®
MFG #RACCYB060ACT000AAAA0
Keller #1405231
My Part ##
Last Ordered#
$19,923.50 / ea
