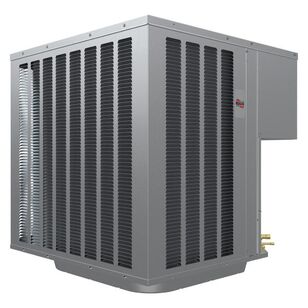

RUUD® Endeavor™ LX Series WP14AY60AJ2NA Heat Pump, 5 ton, 60000 Btu/hr BTU, 208-230 V, 33 A, 1/5 hp, 1 ph Phase, Steel
RUUD® Endeavor™ LX Series WP14AY60AJ2NA Heat Pump, 5 ton, 60000 Btu/hr BTU, 208-230 V, 33 A, 1/5 hp, 1 ph Phase, Steel
RUUD® Heat Pump, Select™ Series, 208-230 V Voltage Rating, 33 A Amperage Rating, 284 W Power Rating, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 850 rpm Rotational Speed, 60000 Btu/hr BTU Rating, 4396 cfm Rating, 9 EER Rating, 14.3 SEER Rating, 7.5 HSPF Rating, Scroll Compressor Type, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 50 A Fuse Rating, 2-Row, 22.7 sq-ft Inner, 23.4 sq-ft Outer, 20 FPI Coil Rating, 5 ton Tonnage, 74 dB Sound Level, 2 Number of Stages, Steel, 39.17 in H x 35.543 in W x 35.543 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,385.59 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating33
BTU Rating60000
CFM Rating4396
Coil Rating2-Row, 22.7 sq-' Inner, 23.4 sq-' Outer, 20 FPI
Compressor TypeScroll
Dimensions39.17 " H x 35.543 " W x 35.543 " D
EER Rating9
Frequency Rating60
Fuse Rating50
HP Rating1/5
HSPF Rating7.5
Liquid Line Size3/8
MaterialSteel
Number of Stages2
Phase1
Power Rating284
Refrigerant TypeR-454B
Rotational Speed850
SEER Rating14.3
SeriesSelect Series
Sound Level74
Suction Line Size7/8
Tonnage5
Voltage Rating208-230
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards and weather corrosion Two-Stage Scroll Compressor1: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability Expanded Valve Space: Provides a minimum working area of 27-square inches for easier access Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems, This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation, For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
